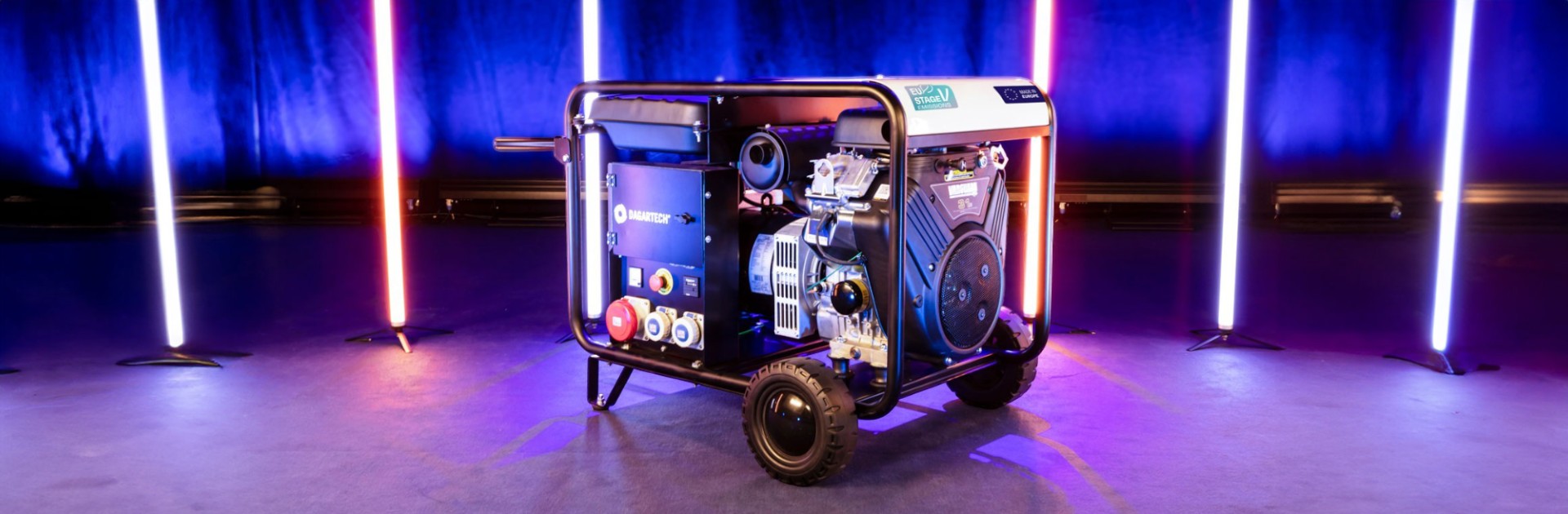

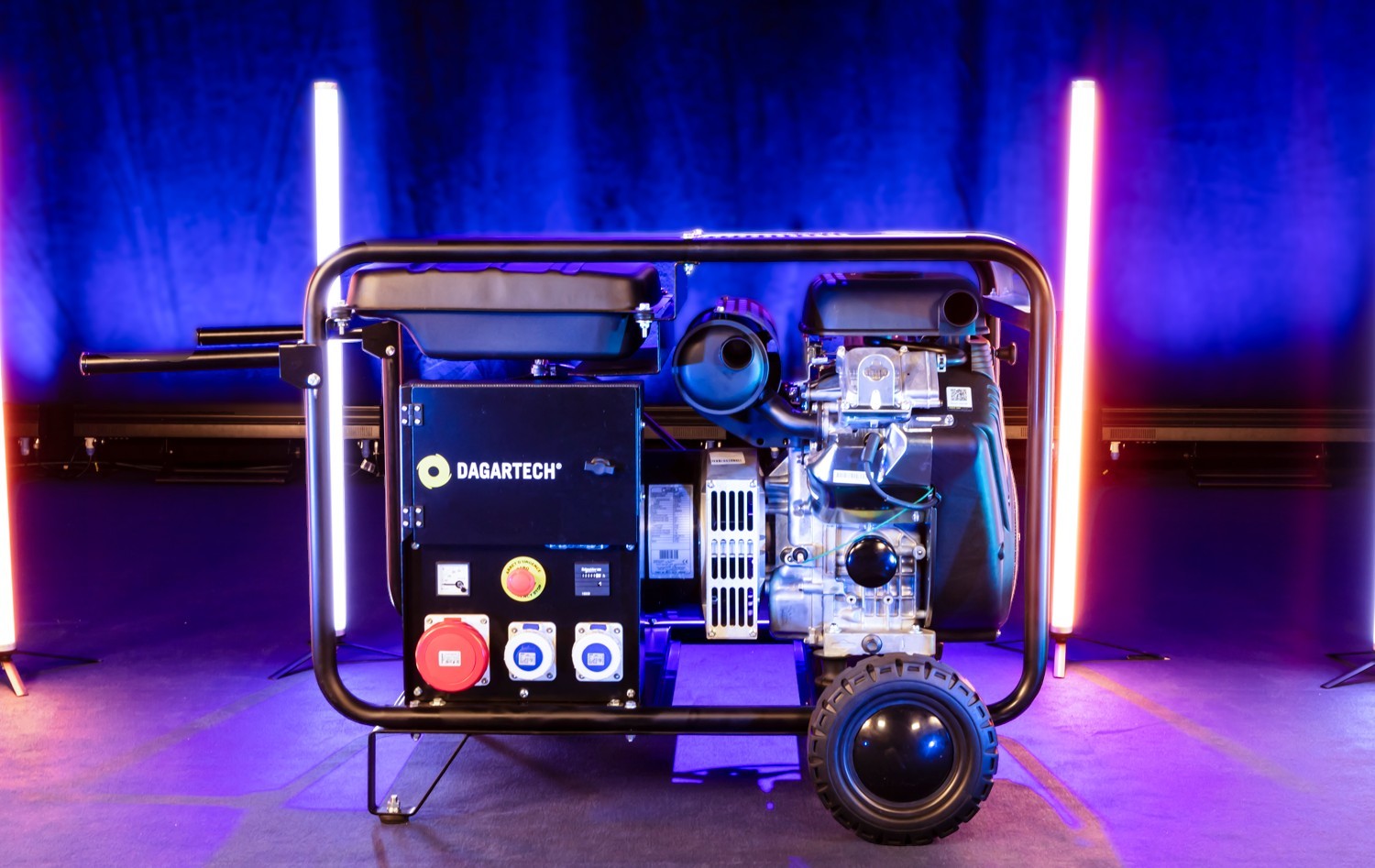

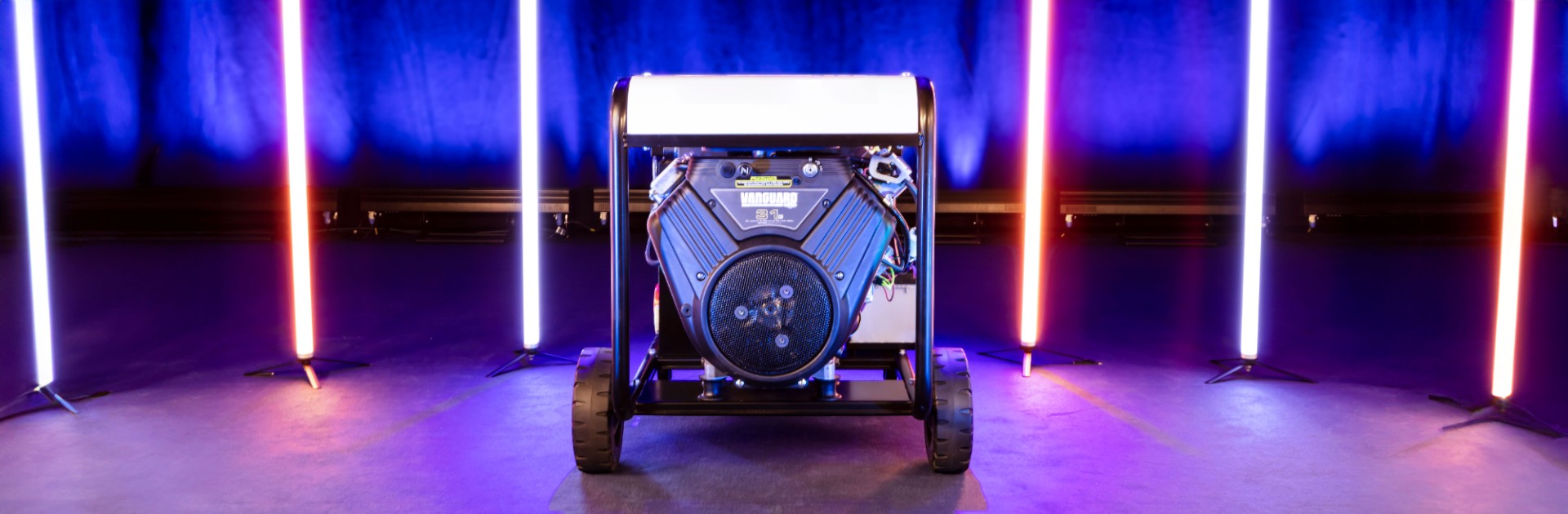

DGB 24 TF BC

Portable three-phase generator from the BC Max range. It features electric start and mobile chassis. This generator is especially suitable for machinery and construction rental.

Power (PRP / ESP):

21 / 24 kVA (17 / 19 kW)

VERSION:

Open

VOLTAGE:

400/230V

EMISSIONS LEVEL: EU Stage V

CE DECLARATION OF CONFORMITY

Data sheet

DGB 24 TF BC

DGB 24 TF BC

DGB 24 TF BC

DGB 24 TF BC

DGB 24 TF BC

DGB 24 TF BC

PRODUCT DETAILS

  • General information

    VERSION

    Open

    Start-up type

    Electric

    Type of chassis

    Moving frame

    Fuel

    Unleaded gasoline

    Voltage

    400/230V

    RPM

    3000

    Number of phases

    3

  • Size and weight

    L (mm)

    1056

    W (mm)

    800

    H (mm)

    819

    Weight (Kg)

    220

  • Engine

    Engine make and model

    VANGUARD 6134

    Type of regulation

    Electronic

    Refrigeration

    Air-cooled

    Emissions

    EU Stage V

    Consumption 75%

    4,2 l/h

  • Tank and autonomy

    Tank size (l)

    25 l

    Autonomy 75% PRP

    6 h

  • Alternator

    Alternator make and model

    LINZ E1S13M E/2

    Type of alternator regulation

    Compound

  • Downloadable documents
  • DGB 24 TF BC

    DGB 24 TF BC

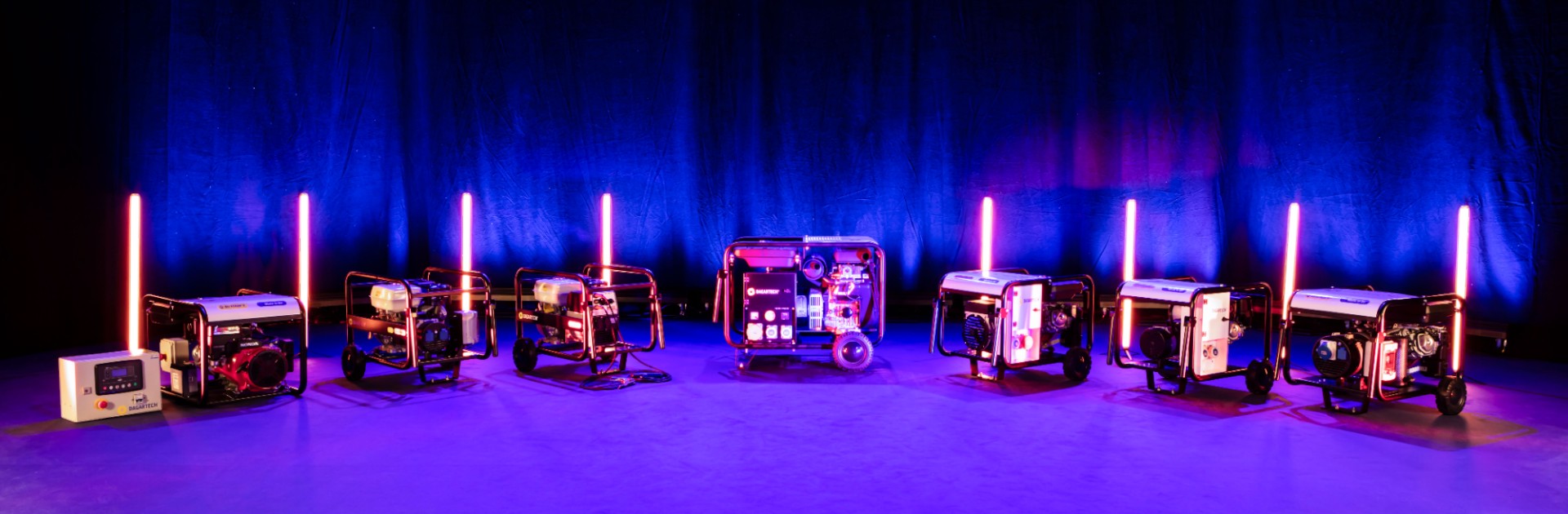

    Range Portable - BC Max

    | 50Hz
