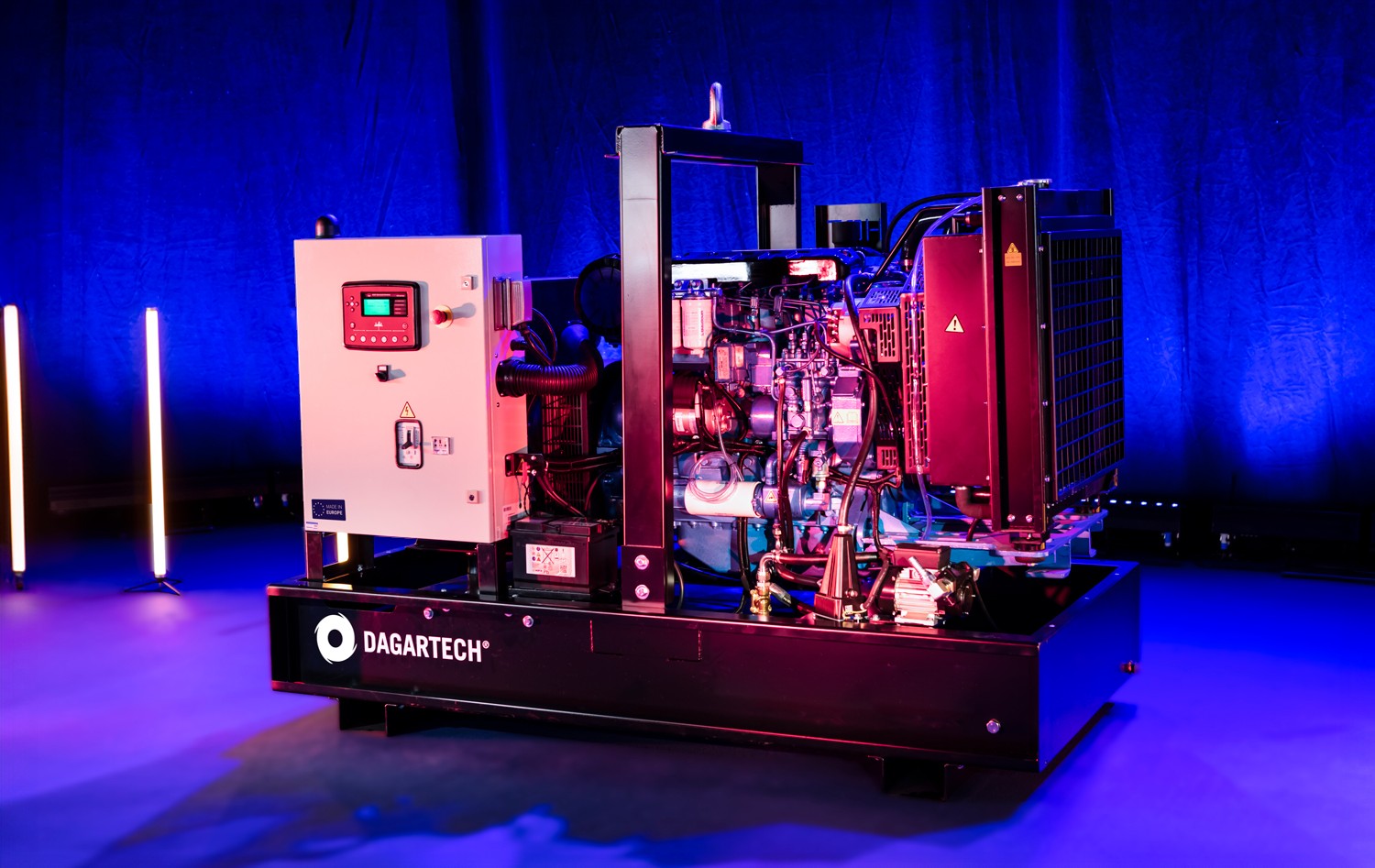

BGC 410 ST
Balance range three-phase open generator, operating in automatic mode, manual mode, signal mode, or test mode. The most balanced energy for emergency applications.
Power (PRP / ESP):
360 / 415 kVA (288 / 332 kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage 0
CE DECLARATION OF CONFORMITY
Other product versions
BGC 410 ST
BGC 410 ST
BGC 410 ST
BGC 410 ST
BGC 410 ST
BGC 410 ST
PRODUCT DETAILS
VERSION
Open
Fuel
Diesel
Voltage
400/230V
Rpm
1500
Phase
3
Version
Open
L (mm)
3400
W (mm)
1550
H (mm)
2233
Weight (Kg)
4000
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage 0
Consumption 75%
60 l/h
Consumption 100%
92 l/h
Tank size (l)
820 l
Autonomy 50% PRP
20 h
Autonomy 75% PRP
13,7 h
Autonomy 100% PRP
10 h
Autonomy 100% ESP
8,9 h
Alternator model
STAMFORD S4L1D-E
Type of alternator regulation
AS440
Switch model
Chint 630A 4P
Amps ESP (A)
599
Switchboard model
599
BGC 410 ST
Spectrum
| 50Hz
Do you need a switchboard for your installation?
SWITCHES BY CONTACTS
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
MOTORISED SWITCHES
Fully apparent cutoff 4-pole remote operated transfer switches. They permit the on-load transfer of two three-phase sources via de-energised remote contacts from an external automatic controller using pulse logic or a switch.
They are designed for use on low voltage power systems where a brief interruption of power to the load during transfer is acceptable.
