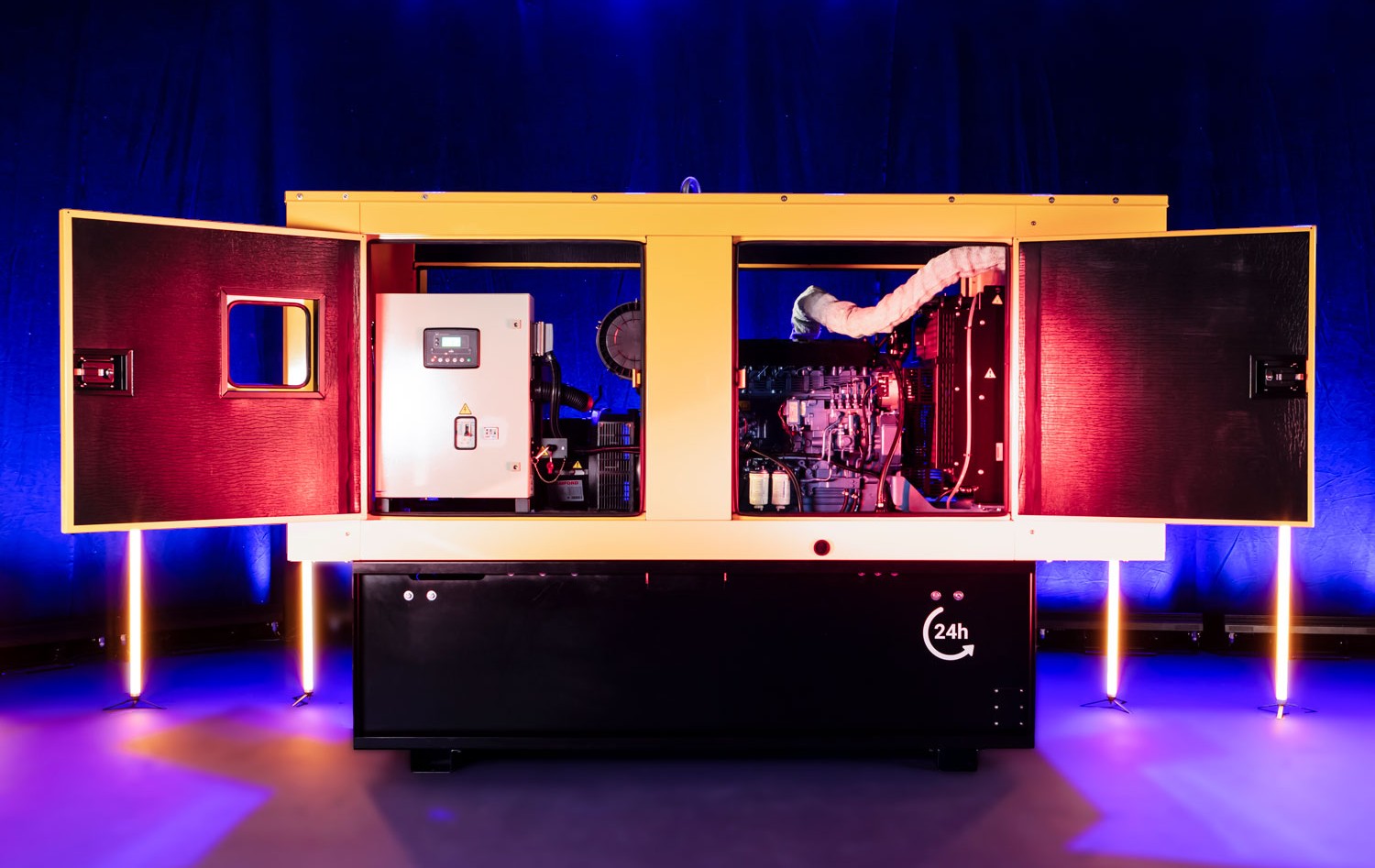

BGCS 330 ME
Balance range three-phase, soundproof generator, operating in automatic mode, manual mode, signal mode, or test mode. The most balanced energy for emergency applications.
Power (PRP / ESP):
300 / 330 kVA (240 / 264 kW)
VERSION:
Soundproofed
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage 0
CE DECLARATION OF CONFORMITY
BGCS 330 ME
BGCS 330 ME
BGCS 330 ME
BGCS 330 ME
BGCS 330 ME
BGCS 330 ME
PRODUCT DETAILS
VERSION
Soundproofed
Fuel
Diesel
Voltage
400/230V
RPM
1500
Number of phases
3
L (mm)
3850
W (mm)
1453
H (mm)
2253
Weight (Kg)
3850
Engine make and model
CUMMINS 6LTAA9.5-G1
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage 0
Consumption 50%
34 l/h
Consumption 75%
50 l/h
Consumption 100% PRP
68 l/h
Consumption 100% ESP
75 l/h
Tank size (l)
560 l
Autonomy 50% PRP
16,5 h
Autonomy 75% PRP
11,2 h
Autonomy 100% PRP
8,2 h
Autonomy 100% ESP
7,5 h
Alternator make and model
MECCALTE ECO38 1L4 C
Type of alternator regulation
DSR
Switch model
Chint 630A 4P
Amps ESP (A)
476,3
Make and model
DSE 7320 MKII
BGCS 330 ME
Range Emergency Balance
| 50Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
