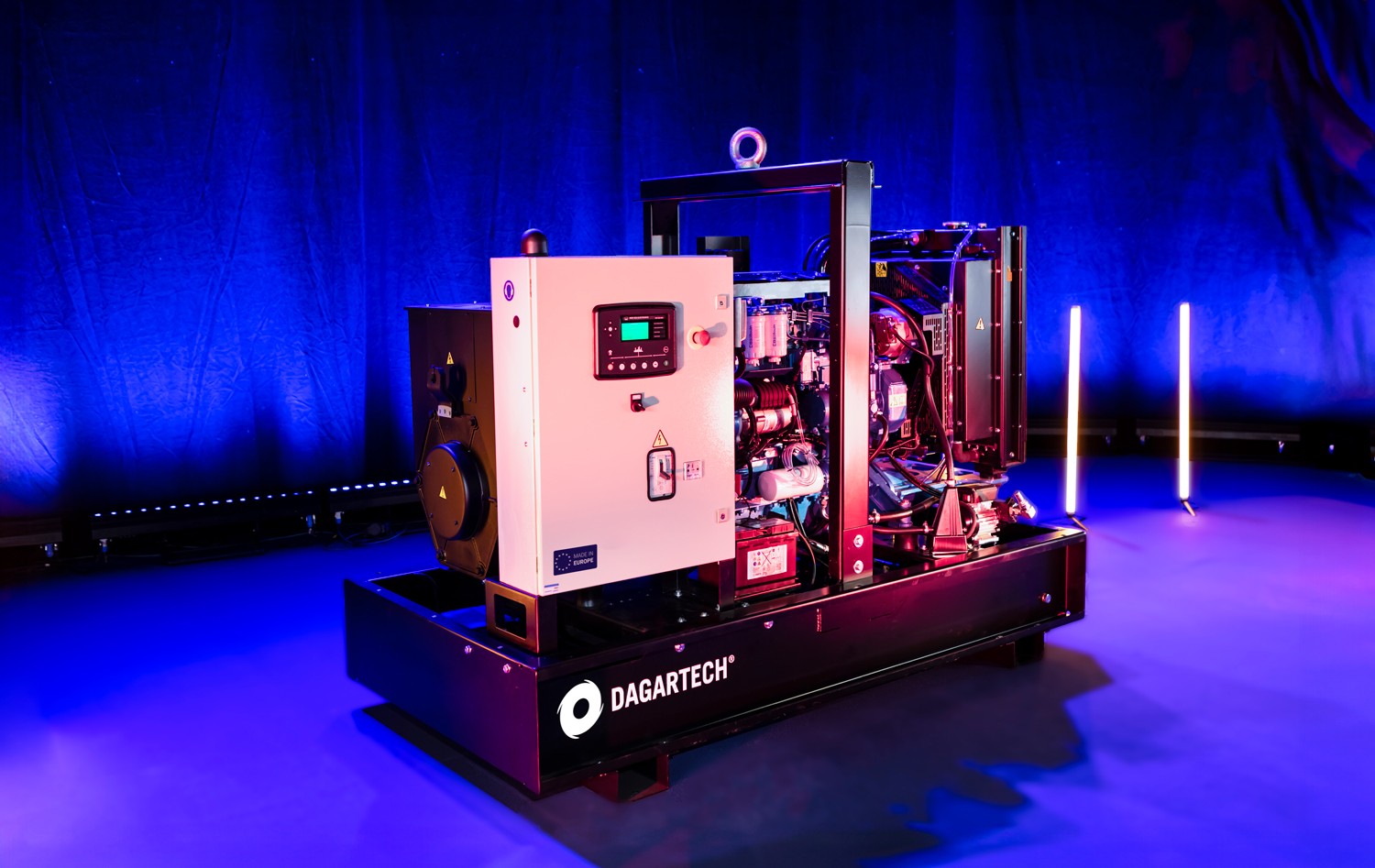

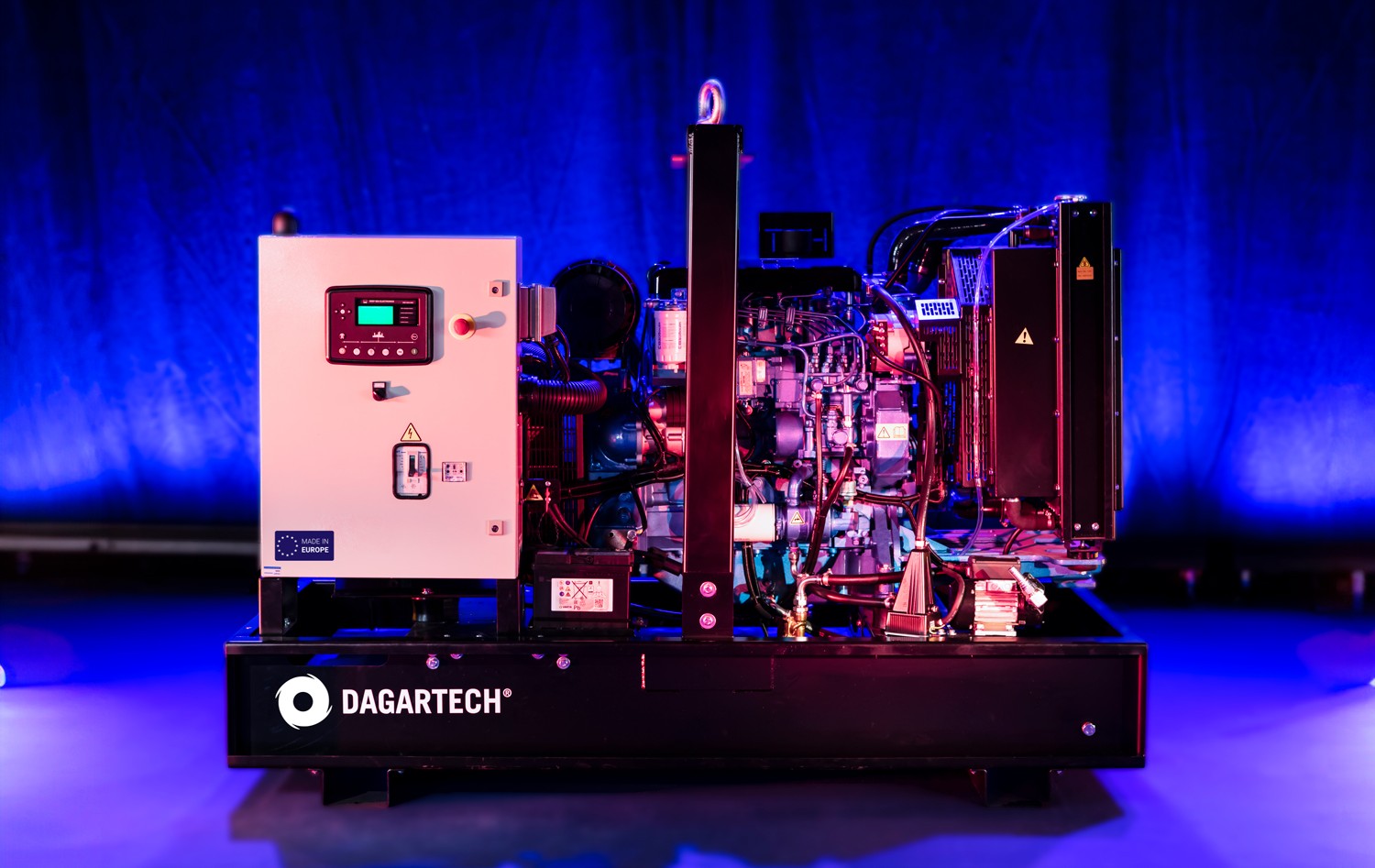

BGV 650 ST
Balance range three-phase open generator, operating in automatic mode, manual mode, signal mode, or test mode. The most balanced energy for emergency applications.
Power (PRP / ESP):
600 / 657 kVA (480 / 526 kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage II
CE DECLARATION OF CONFORMITY
BGV 650 ST
BGV 650 ST
BGV 650 ST
BGV 650 ST
BGV 650 ST
BGV 650 ST
PRODUCT DETAILS
VERSION
Open
Fuel
Diesel
Voltage
400/230V
Rpm
1500
Phase
3
Version
Open
L (mm)
3905
W (mm)
1660
H (mm)
2395
Weight (Kg)
4750
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage II
Consumption 75%
88,4 l/h
Consumption 100%
129,7 l/h
Tank size (l)
1400 l
Autonomy 50% PRP
23,5 h
Autonomy 75% PRP
15,8 h
Autonomy 100% PRP
12,1 h
Autonomy 100% ESP
10,8 h
Alternator model
STAMFORD HCI544E
Type of alternator regulation
AS440
Switch model
Chint 1000A 4P
Amps ESP (A)
948,3
Switchboard model
948,3
BGV 650 ST
Spectrum
| 50Hz
Do you need a switchboard for your installation?
SWITCHES BY CONTACTS
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
MOTORISED SWITCHES
Fully apparent cutoff 4-pole remote operated transfer switches. They permit the on-load transfer of two three-phase sources via de-energised remote contacts from an external automatic controller using pulse logic or a switch.
They are designed for use on low voltage power systems where a brief interruption of power to the load during transfer is acceptable.
