BGVW 140 ST

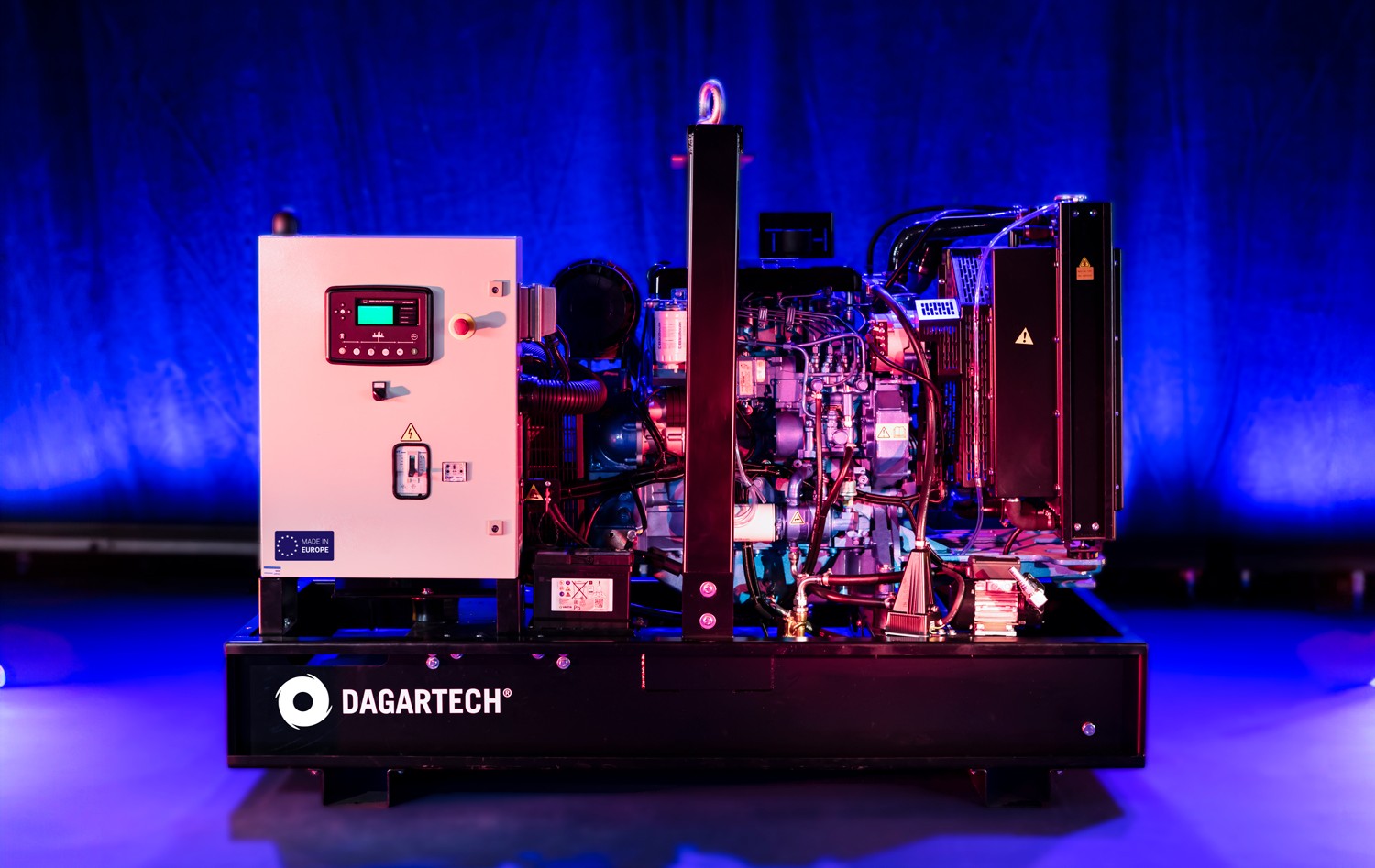

Balance range three-phase open generator, operating in automatic mode, manual mode, signal mode, or test mode. The most balanced energy for emergency applications.
Power (PRP / ESP):
160 / 175 kVA (128 / 140 kW)
VERSION:
Open
VOLTAGE:
220/127V
EMISSIONS LEVEL: EU Stage II, TA-luft
CE DECLARATION OF CONFORMITY
Other product versions
BGVW 140 ST
BGVW 140 ST
BGVW 140 ST
BGVW 140 ST
BGVW 140 ST
BGVW 140 ST
PRODUCT DETAILS
VERSION
Open
Fuel
Diesel
Voltage
220/127V
Rpm
1800
Phase
3
Version
Open
L (mm)
2650
W (mm)
1100
H (mm)
2005
Weight (Kg)
1850
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage II, TA-luft
Consumption 75%
27,1 l/h
Consumption 100%
41 l/h
Tank size (l)
344 l
Autonomy 50% PRP
18,6 h
Autonomy 75% PRP
12,7 h
Autonomy 100% PRP
9,4 h
Autonomy 100% ESP
8,4 h
Alternator model
STAMFORD UCI274E
Type of alternator regulation
AS440
Switch model
Chint 630A 4P
Amps ESP (A)
459,3
Switchboard model
459,3
BGVW 140 ST
Spectrum
| 60Hz
Do you need a switchboard for your installation?
SWITCHES BY CONTACTS
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
MOTORISED SWITCHES
Fully apparent cutoff 4-pole remote operated transfer switches. They permit the on-load transfer of two three-phase sources via de-energised remote contacts from an external automatic controller using pulse logic or a switch.
They are designed for use on low voltage power systems where a brief interruption of power to the load during transfer is acceptable.
