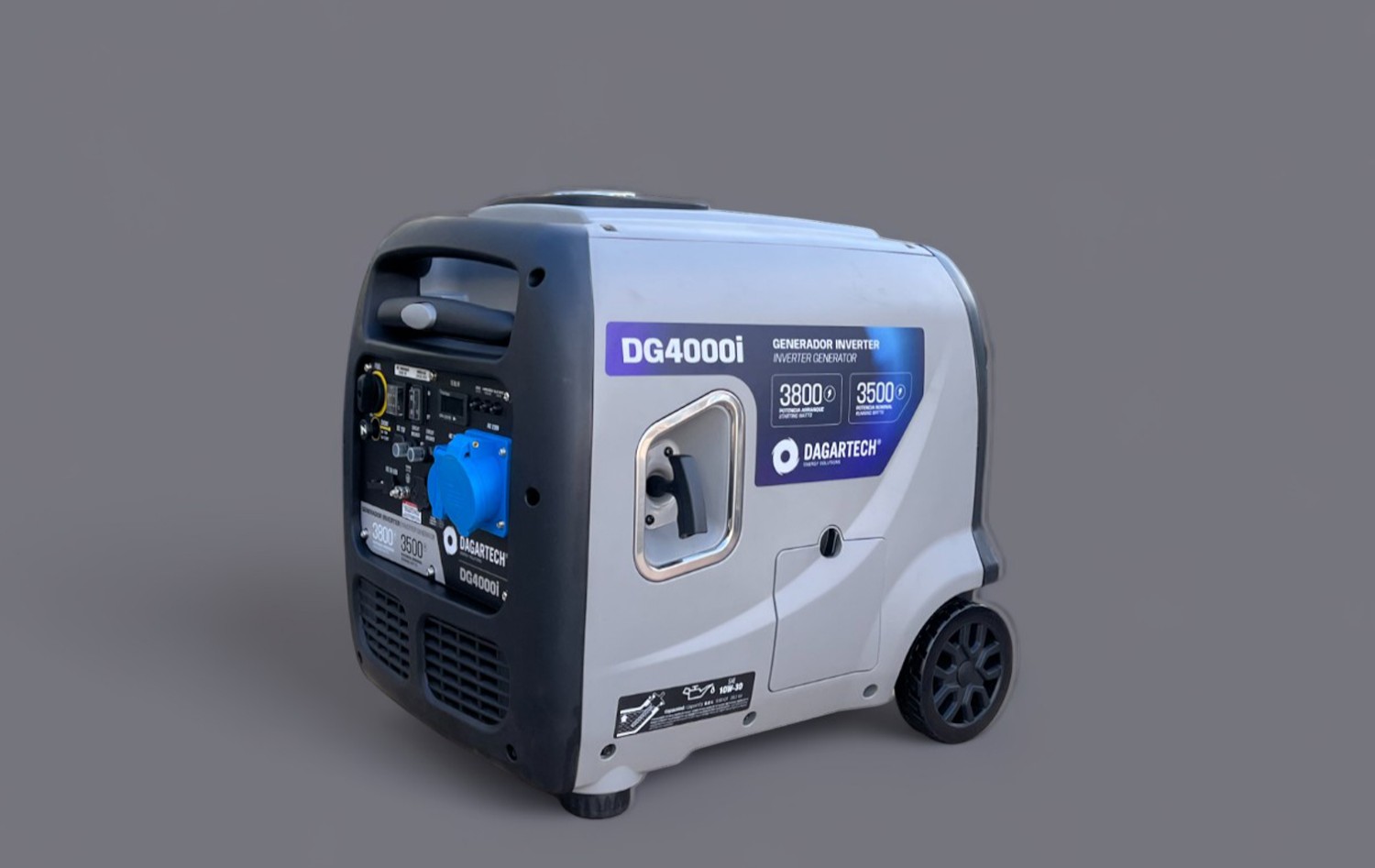

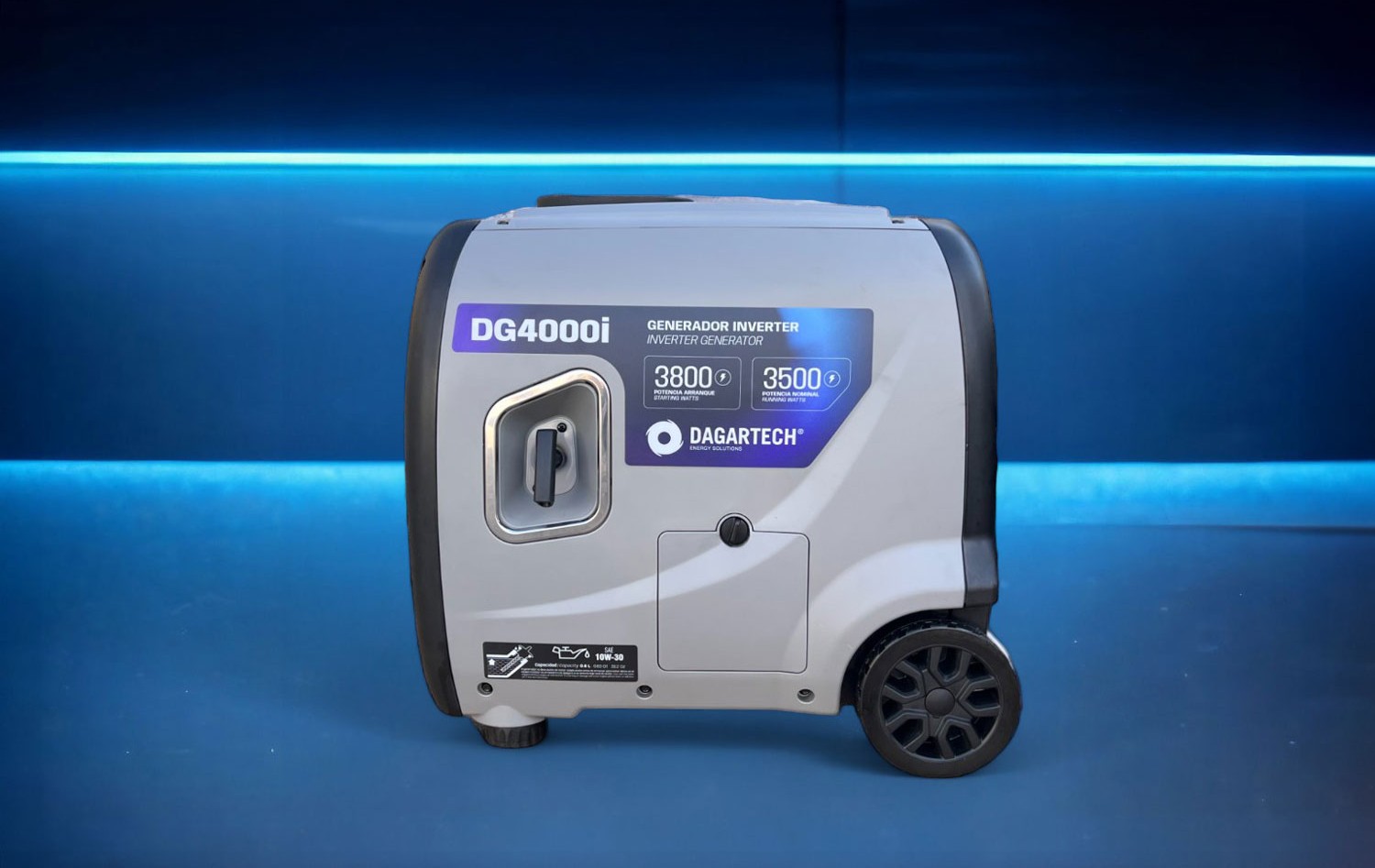

DG4000i

Electric start inverter generator. It features PowerPulse technology, enhancing its starting capacity. Provides stable, efficient power without fluctuations.

Power (PRP / ESP):

3,5 / 3,8 kVA (3,5 / 3,8 kW)

VERSION:

Soundproofed

VOLTAGE:

230V

EMISSIONS LEVEL: EU Stage V

CE DECLARATION OF CONFORMITY

Data sheet

DG4000i

PRODUCT DETAILS

General information

VERSION

Soundproofed

Start-up type

Electric

Type of chassis

Moving frame

Fuel

Unleaded gasoline

Voltage

230V

RPM

3000

Number of phases

Size and weight

L (mm)

665

W (mm)

485

H (mm)

545

Weight (Kg)

Engine

Engine make and model

DAGARTECH SV230 (223cc)

Rated power (W)

4000

Starting power (W)

4000

Refrigeration

Air-cooled

Emissions

EU Stage V

Consumption 50%

1,1 l/h

Consumption 100% PRP

1,8 l/h

Tank and autonomy

Tank size (l)

10 l

Autonomy 50% PRP

9 h

Autonomy 100% PRP

5,5 h

Alternator

Alternator make and model

DAGARTECH 4000W

Downloadable documents

Data sheet (PDF) User's manual (PDF)
