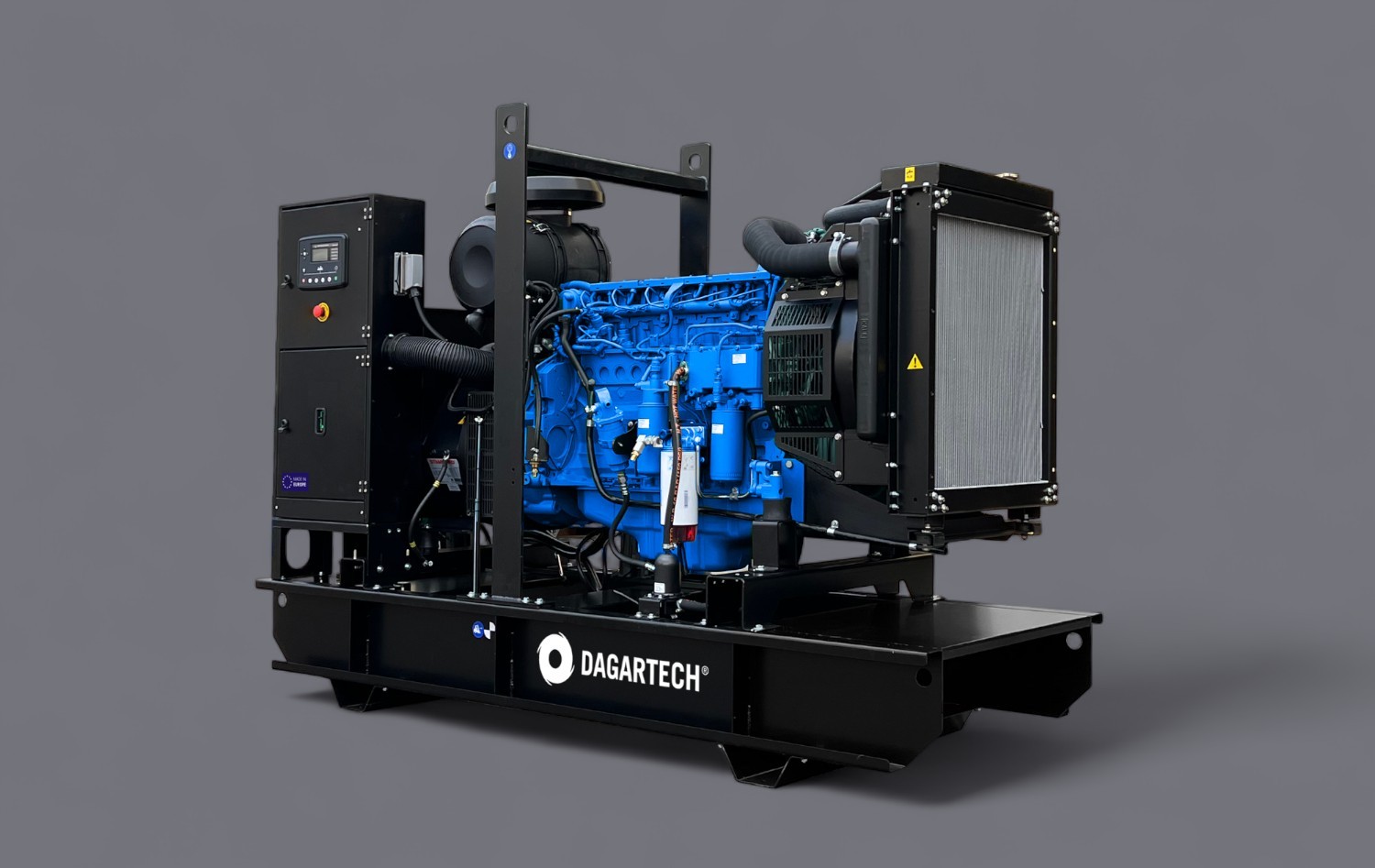

DGB 170 ME
Industrial range three-phase open generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
155 / 170 kVA (124 / 136 kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage 0
CE DECLARATION OF CONFORMITY
DGB 170 ME
DGB 170 ME
DGB 170 ME
DGB 170 ME
DGB 170 ME
DGB 170 ME
PRODUCT DETAILS
VERSION
Open
Fuel
Diesel
Voltage
400/230V
RPM
1500
Number of phases
3
L (mm)
2600
W (mm)
1000
H (mm)
1900
Weight (Kg)
1750
Engine make and model
BAUDOUIN 6M11G4D0/S
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage 0
Consumption 50%
16,7 l/h
Consumption 75%
24,6 l/h
Consumption 100% PRP
32,6 l/h
Consumption 100% ESP
36,1 l/h
Tank size (l)
430 l
Autonomy 50% PRP
25,7 h
Autonomy 75% PRP
17,5 h
Autonomy 100% PRP
13,2 h
Autonomy 100% ESP
11,9 h
Alternator make and model
MECCALTE ECP34 2L4 C
Type of alternator regulation
DSR
Switch model
Schneider EasyPact 250A 4P
Amps ESP (A)
255
Make and model
DSE 6020 MKII
DGB 170 ME
Range Industrial
| 50Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
