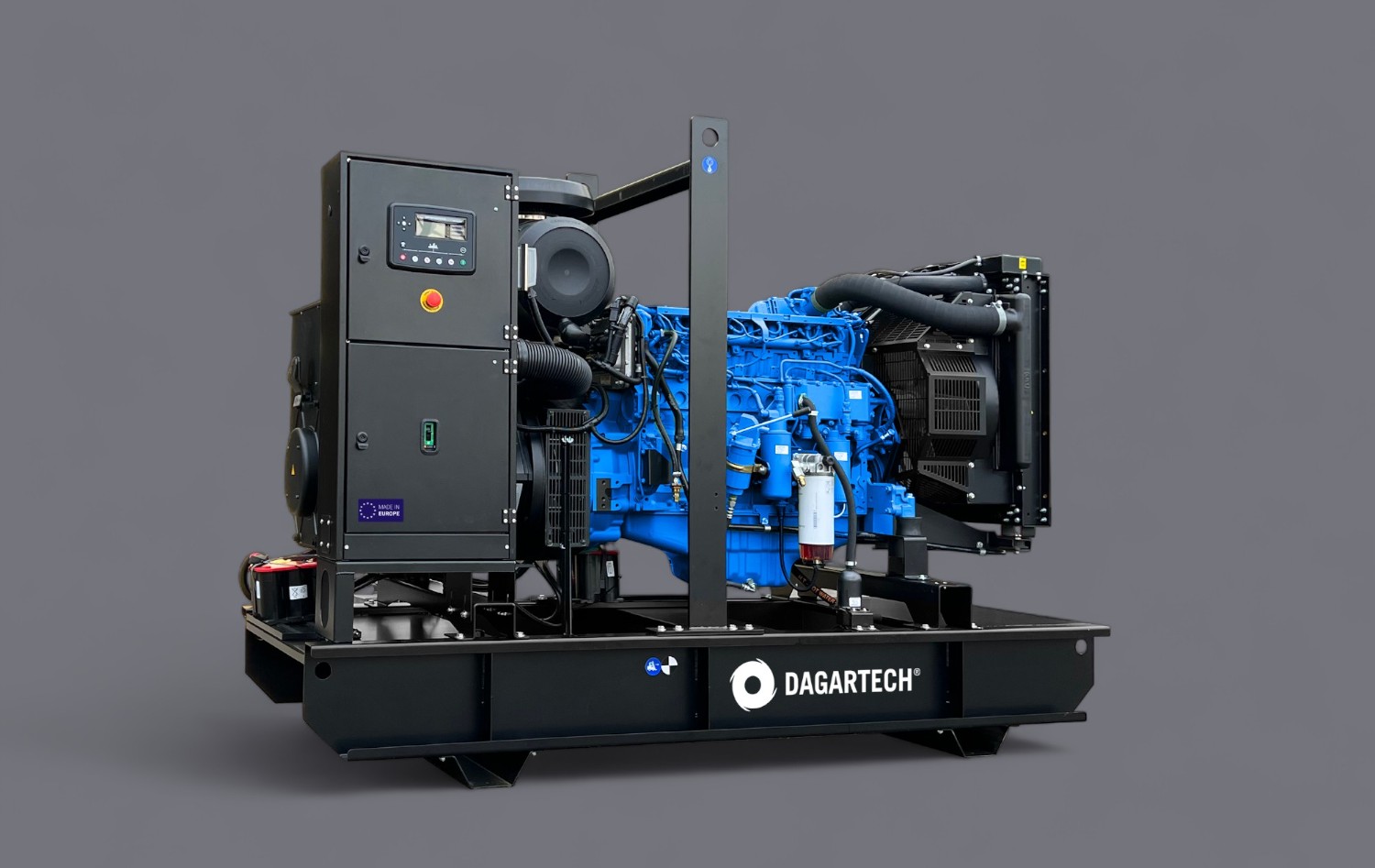

DGB 220 ST
Industrial range three-phase open generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
200 / 220 kVA (160 / 176 kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage 0
CE DECLARATION OF CONFORMITY
Other product versions
DGB 220 ST
DGB 220 ST
DGB 220 ST
DGB 220 ST
DGB 220 ST
DGB 220 ST
PRODUCT DETAILS
VERSION
Open
Fuel
Diesel
Voltage
400/230V
Rpm
1500
Phase
3
Version
Open
L (mm)
2975
W (mm)
1120
H (mm)
2100
Weight (Kg)
2100
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage 0
Consumption 75%
32,4 l/h
Consumption 100%
46,9 l/h
Tank size (l)
585 l
Autonomy 50% PRP
26,1 h
Autonomy 75% PRP
18,1 h
Autonomy 100% PRP
13,6 h
Autonomy 100% ESP
12,5 h
Alternator model
STAMFORD UCI274H
Type of alternator regulation
AS440
Switch model
Schneider EasyPact 400A 4P
Amps ESP (A)
317,5
Switchboard model
317,5
DGB 220 ST
Spectrum
| 50Hz
Do you need a switchboard for your installation?
SWITCHES BY CONTACTS
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
MOTORISED SWITCHES
Fully apparent cutoff 4-pole remote operated transfer switches. They permit the on-load transfer of two three-phase sources via de-energised remote contacts from an external automatic controller using pulse logic or a switch.
They are designed for use on low voltage power systems where a brief interruption of power to the load during transfer is acceptable.
