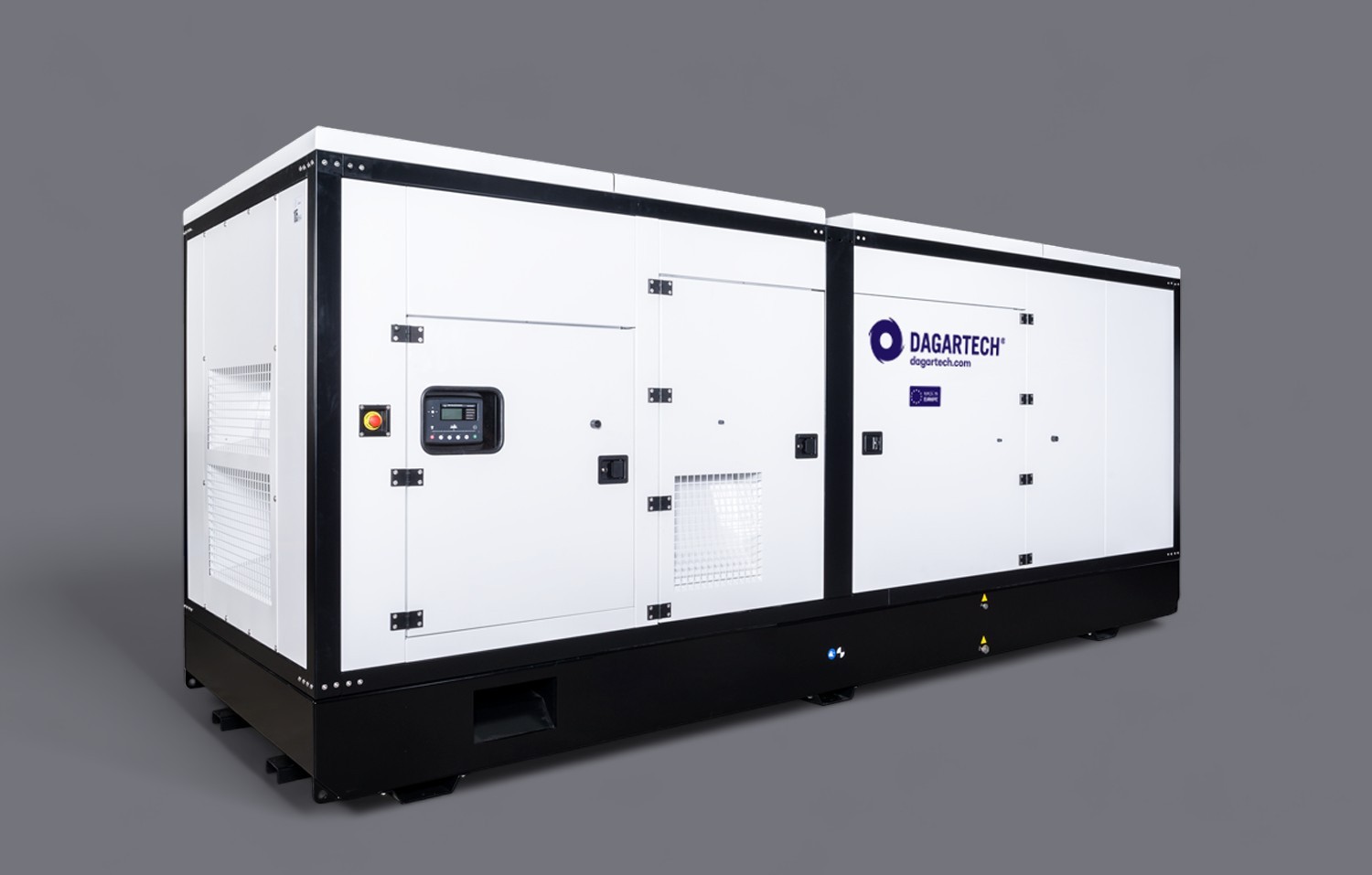

DGBS 1000 ST

High-power, soundproof three-phase generator, operating in automatic mode, manual mode, signal mode, or test mode. Limitless stellar energy, pure power.

Power (PRP / ESP):

940 / 1010 kVA (752 / 808 kW)

VERSION:

Soundproofed

VOLTAGE:

400/230V

EMISSIONS LEVEL: EU Stage 0

CE DECLARATION OF CONFORMITY

Data sheet

Another version of this product

DGB 1000 ST

Version:

Open

Voltage:

400/230V

DGBS 1000 ST

PRODUCT DETAILS

General information

VERSION

Soundproofed

Fuel

Diesel

Voltage

400/230V

RPM

1500

Number of phases

Size and weight

L (mm)

5603

W (mm)

1916

H (mm)

2735

Weight (Kg)

8970

Engine

Engine make and model

BAUDOUIN 12M26G1000/5

Type of regulation

Electronic

Refrigeration

Water-cooled

Emissions

EU Stage 0

Consumption 50%

100,8 l/h

Consumption 75%

146,5 l/h

Consumption 100% PRP

195,5 l/h

Consumption 100% ESP

218,9 l/h

Tank and autonomy

Tank size (l)

995 l

Autonomy 50% PRP

9,9 h

Autonomy 75% PRP

6,8 h

Autonomy 100% PRP

5,1 h

Autonomy 100% ESP

4,5 h

Alternator

Alternator make and model

STAMFORD HCI634H

Type of alternator regulation

MX321+PMG

Circuit breaker

Switch model

Schneider ComPact 1600A 4P

Amps ESP (A)

1457,8

Control card

Make and model

DSE 7320 MKII

Downloadable documents

Data sheet (PDF) Installation drawing (PDF) Installation drawing (DWG)
