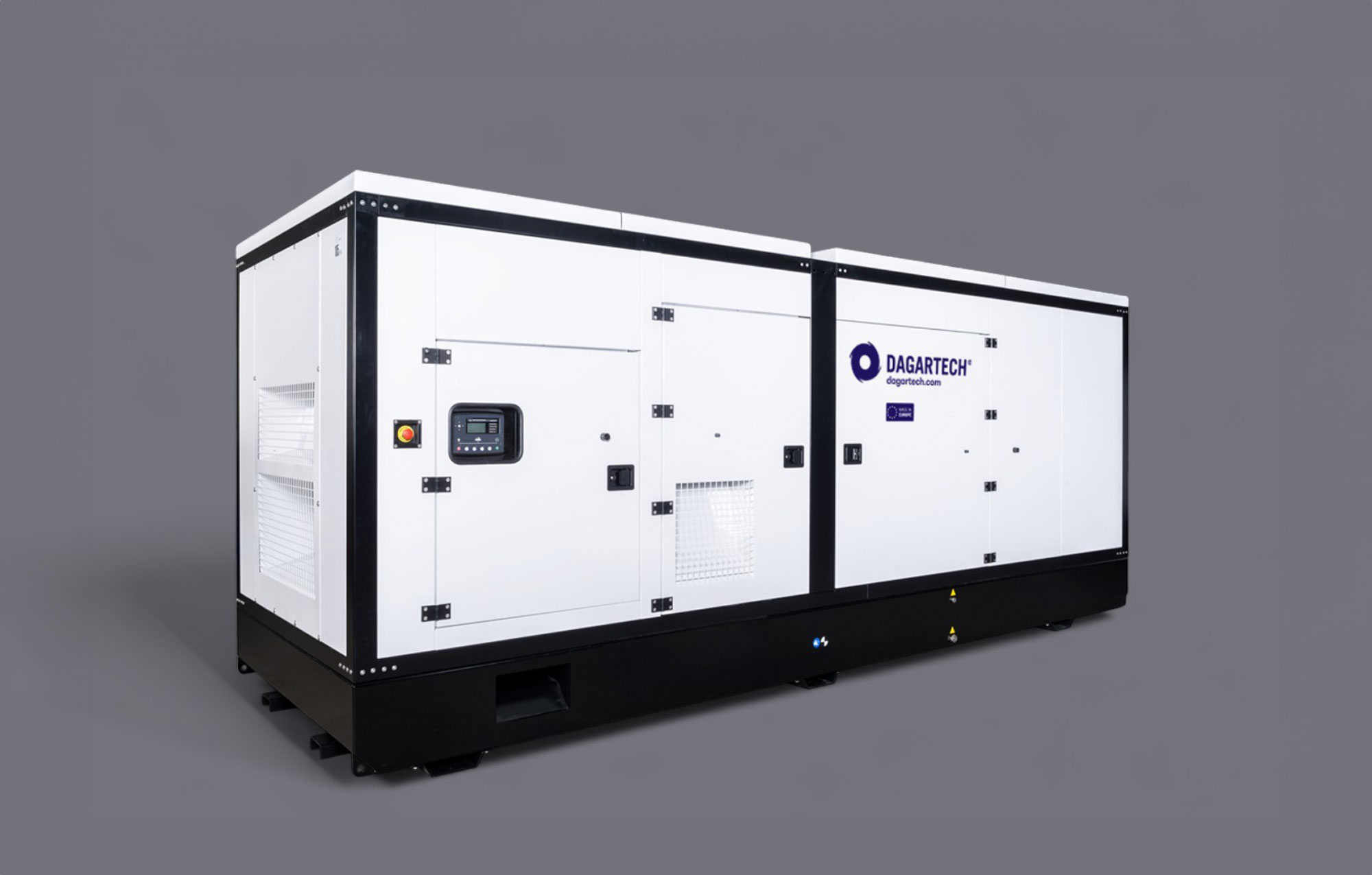

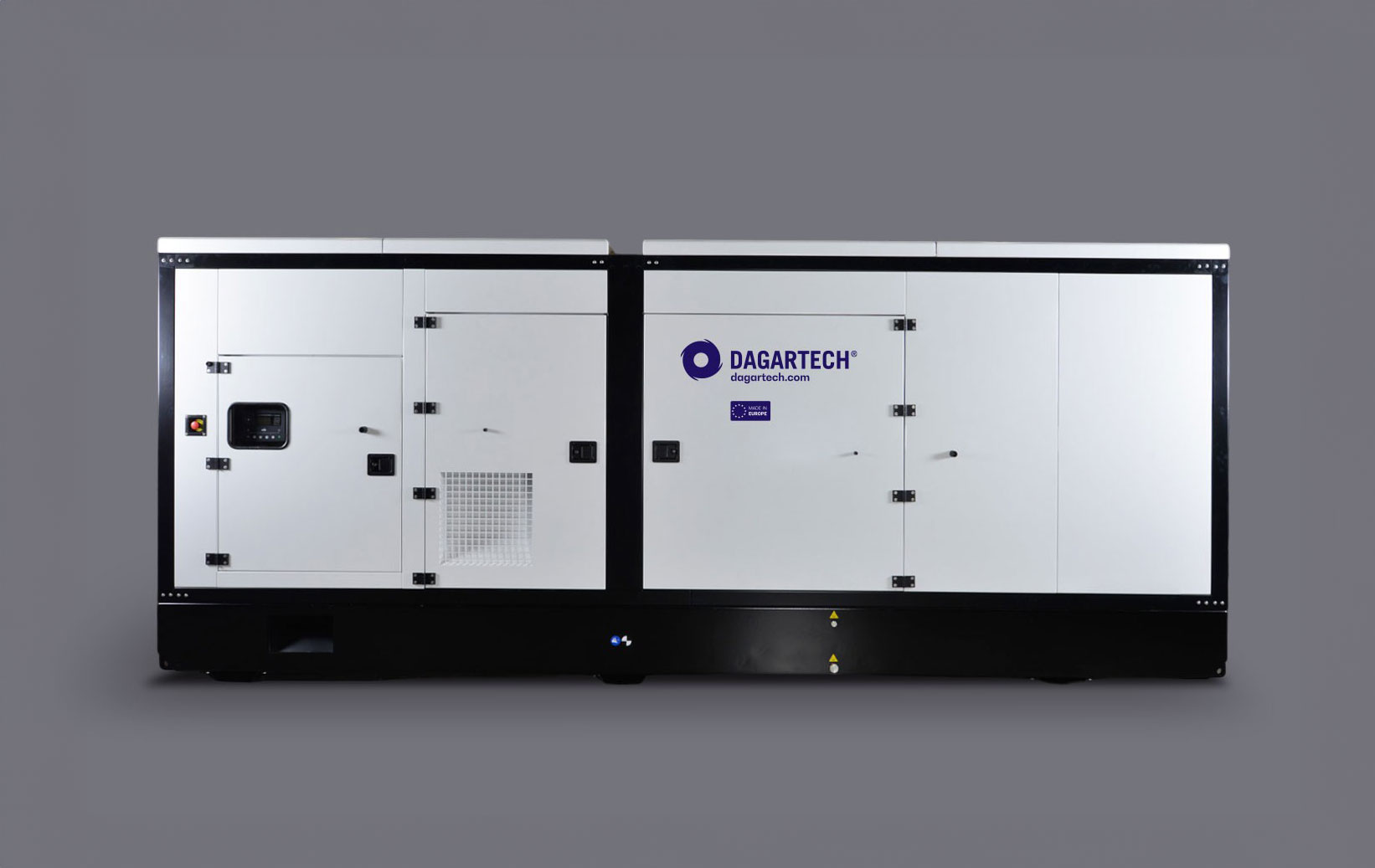

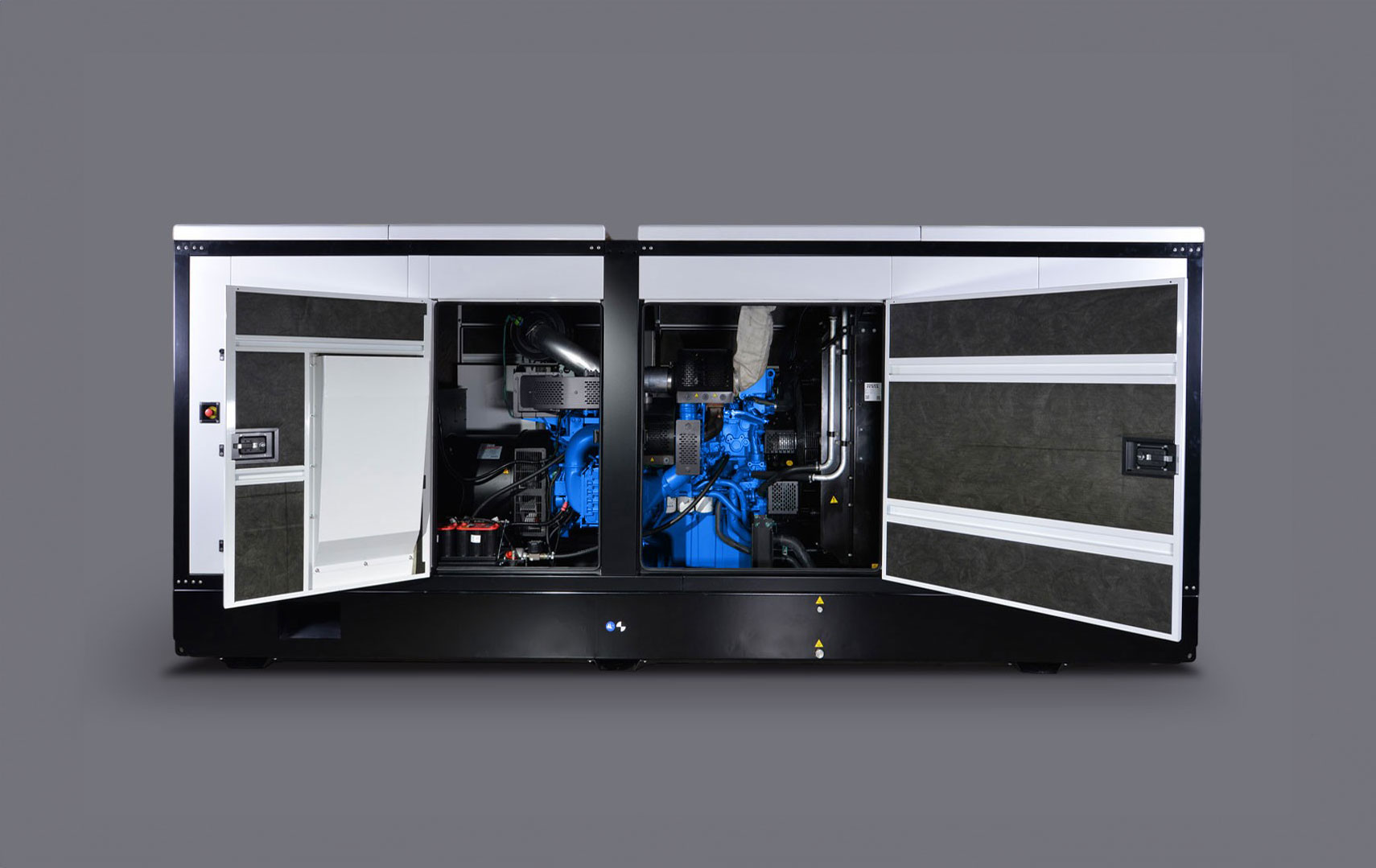

DGBS 1110 ST

High-power, soundproof three-phase generator, operating in automatic mode, manual mode, signal mode, or test mode. Limitless stellar energy, pure power.

Power (PRP / ESP):

1024 / 1110 kVA (819 / 888 kW)

VERSION:

Soundproofed

VOLTAGE:

400/230V

EMISSIONS LEVEL: EU Stage 0

CE DECLARATION OF CONFORMITY

Data sheet

Another version of this product

DGB 1110 ST

Version:

Open

Voltage:

400/230V

DGBS 1110 ST

PRODUCT DETAILS

General information

VERSION

Soundproofed

Fuel

Diesel

Voltage

400/230V

RPM

1500

Number of phases

Size and weight

L (mm)

5603

W (mm)

1916

H (mm)

2735

Weight (Kg)

9050

Engine

Engine make and model

BAUDOUIN 12M26G1100/5

Type of regulation

Electronic

Refrigeration

Water-cooled

Emissions

EU Stage 0

Consumption 50%

106,6 l/h

Consumption 75%

155,3 l/h

Consumption 100% PRP

207,1 l/h

Consumption 100% ESP

228,1 l/h

Tank and autonomy

Tank size (l)

995 l

Autonomy 50% PRP

9,3 h

Autonomy 75% PRP

6,4 h

Autonomy 100% PRP

4,8 h

Autonomy 100% ESP

4,4 h

Alternator

Alternator make and model

STAMFORD HCI634J

Type of alternator regulation

MX321+PMG

Circuit breaker

Switch model

Schneider ComPact 1600A 4P

Amps ESP (A)

1602,1

Control card

Make and model

DSE 7320 MKII

Downloadable documents

Data sheet (PDF) Installation drawing (PDF) Installation drawing (DWG)
