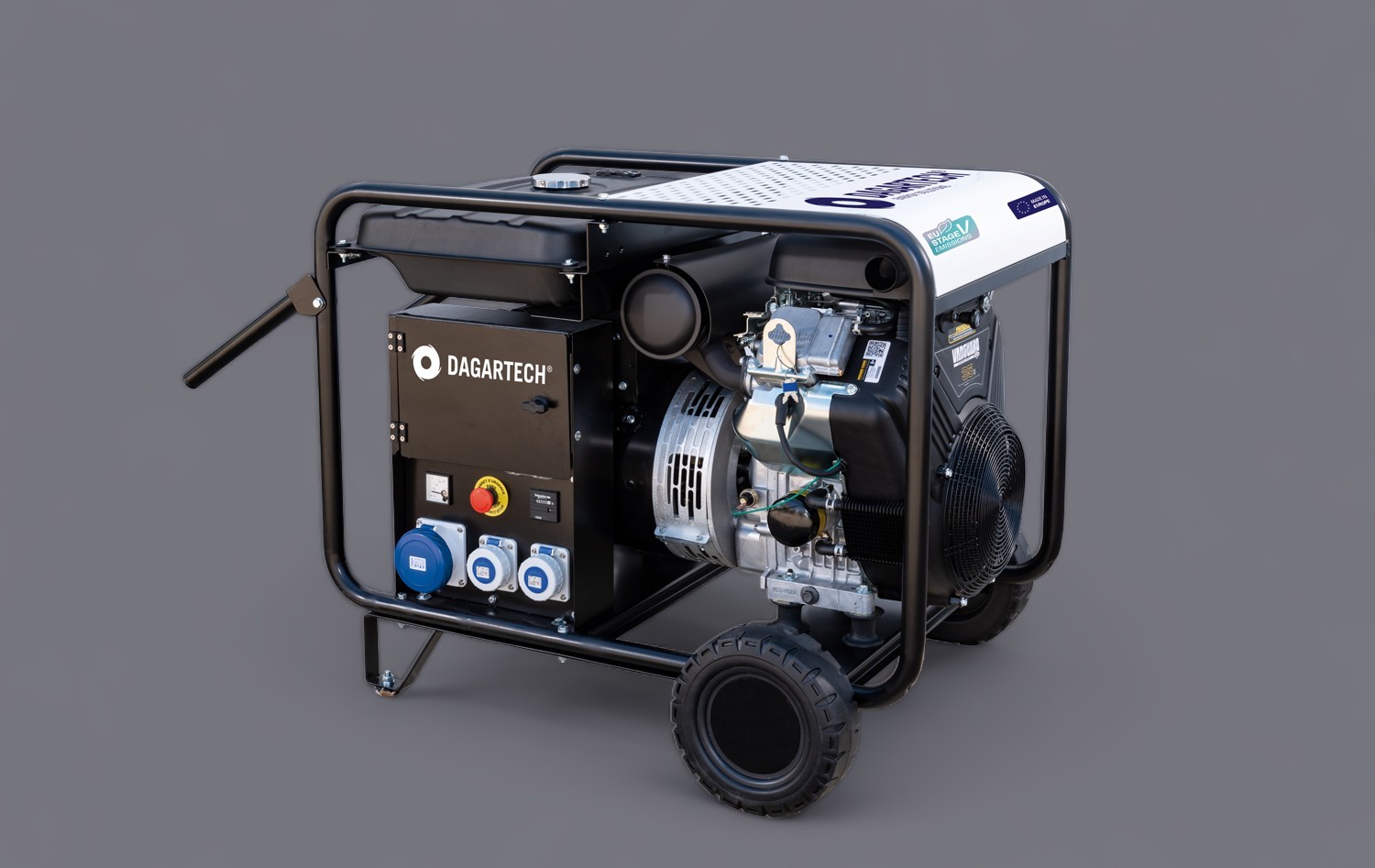

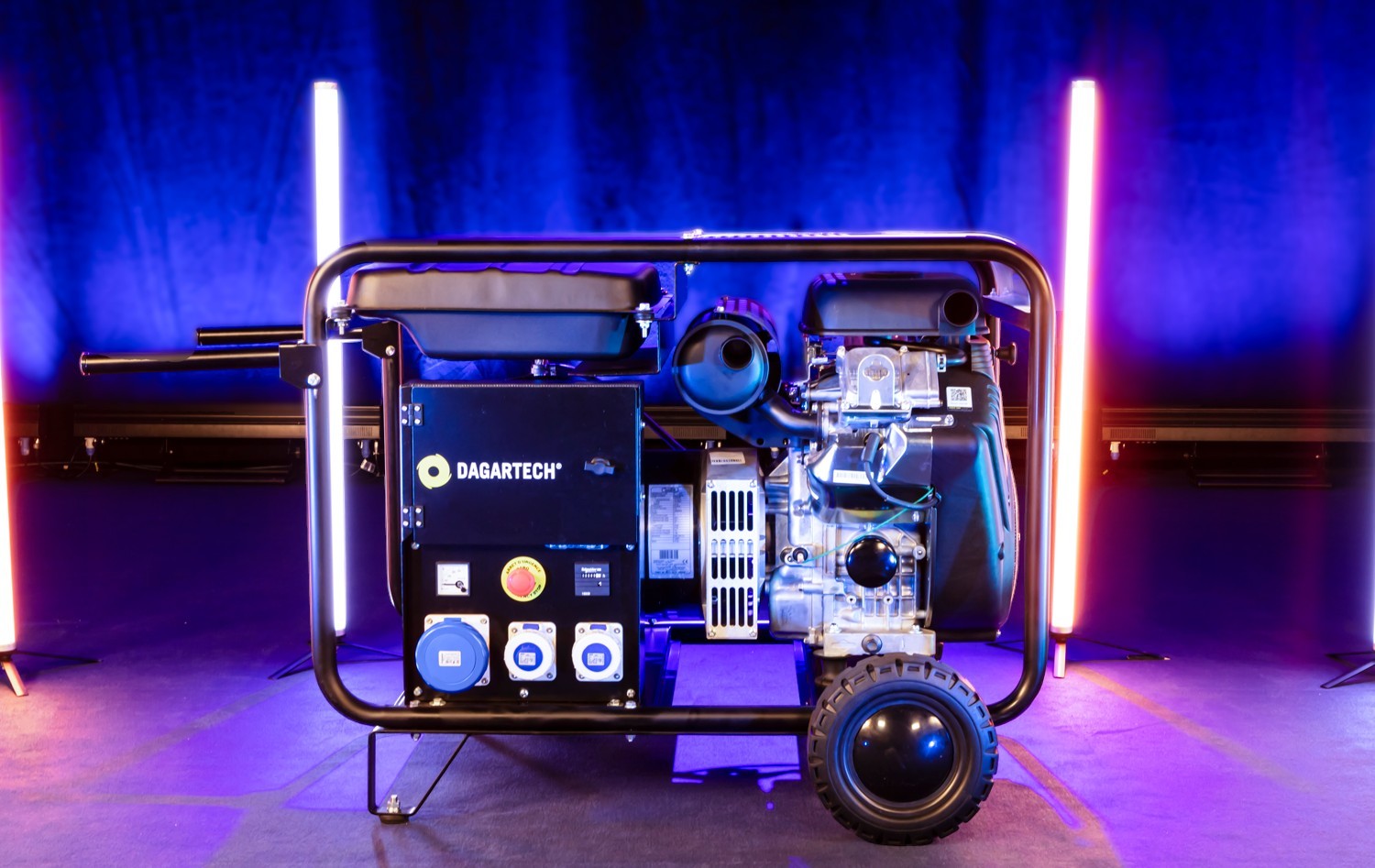

DGH 12000 BC

Portable single-phase generator from the BC Max range. It features electric start and mobile chassis. This generator is especially suitable for machinery and construction rental.

Power (PRP / ESP):

12 / kVA (12 / kW)

VERSION:

Open

VOLTAGE:

230V

EMISSIONS LEVEL: EU Stage V

CE DECLARATION OF CONFORMITY

Data sheet

DGH 12000 BC

PRODUCT DETAILS

General information

VERSION

Open

Start-up type

Electric

Type of chassis

Moving frame

Fuel

Unleaded gasoline

Voltage

230V

RPM

3000

Number of phases

Size and weight

L (mm)

1026

W (mm)

756

H (mm)

789

Weight (Kg)

163

Engine

Engine make and model

HONDA GX630

Type of regulation

Mechanical

Refrigeration

Air-cooled

Emissions

EU Stage V

Consumption 75%

4,2 l/h

Consumption 100% PRP

6 l/h

Tank and autonomy

Tank size (l)

25 l

Autonomy 75% PRP

5,9 h

Autonomy 100% PRP

4,2 h

Alternator

Alternator make and model

LINZ E1C11M C

Type of alternator regulation

Compound
