DGH 15 TF P

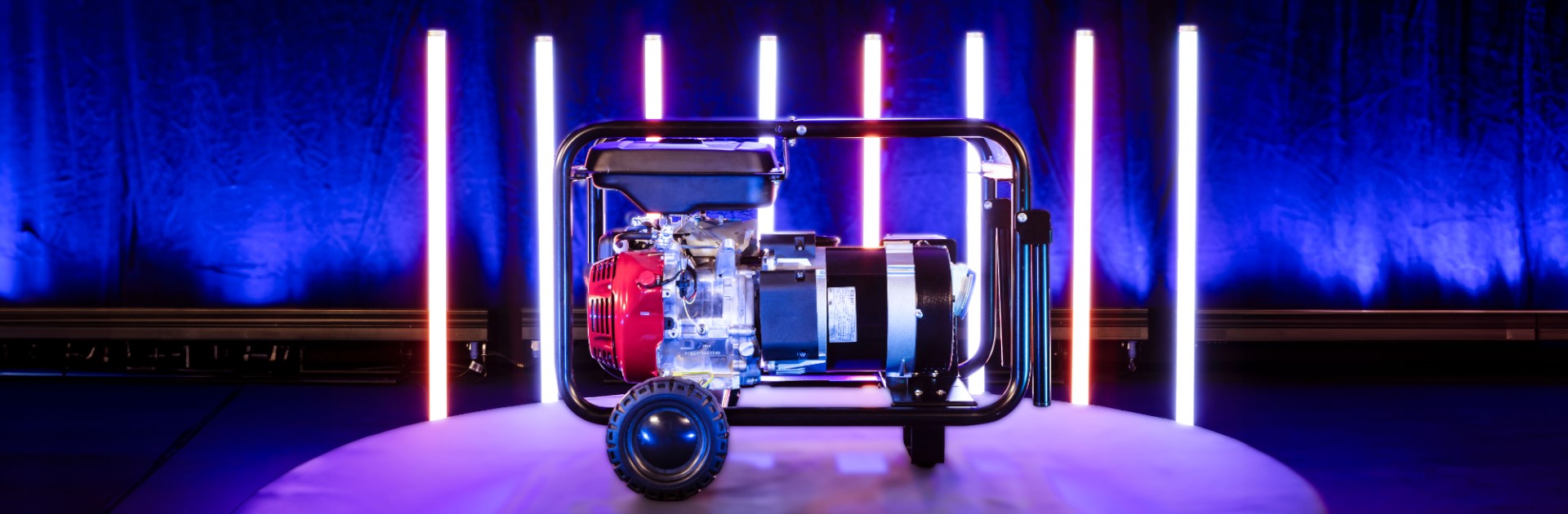

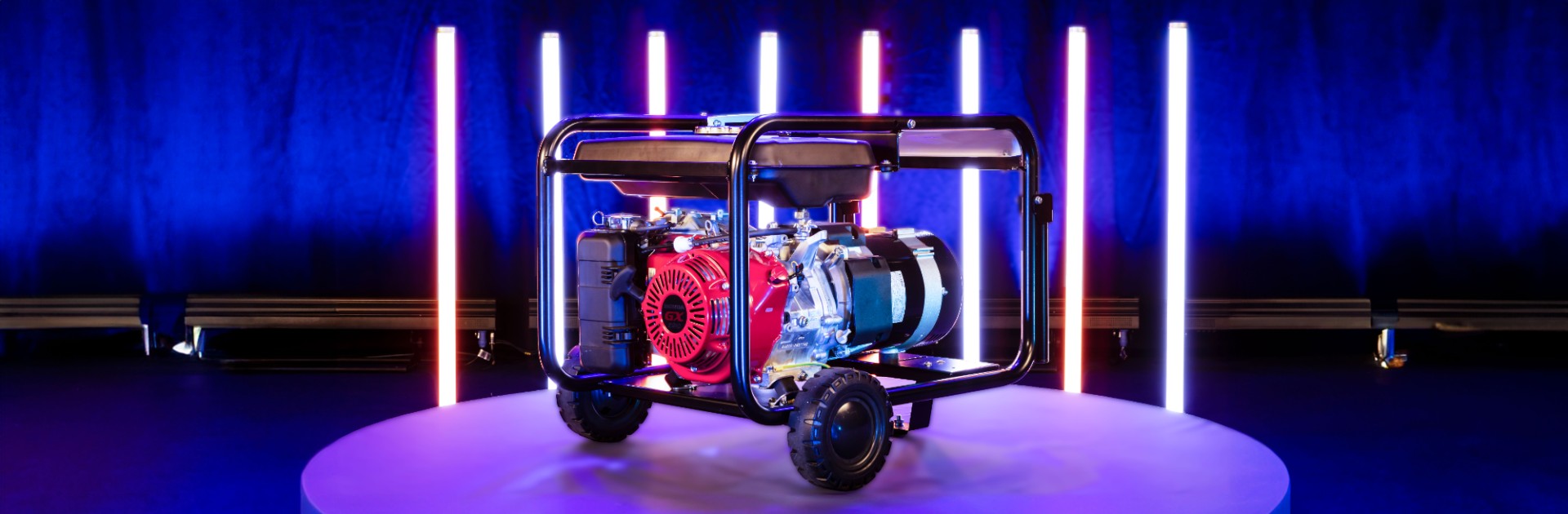

Portable three-phase generator from the Professional range. It features electric start and static chassis. You can enhance its equipment with a transport kit or an AVR alternator.

Power (PRP / ESP):

15 / kVA (12 / kW)

VERSION:

Open

VOLTAGE:

400/230V

EMISSIONS LEVEL: EU Stage V

CE DECLARATION OF CONFORMITY

Data sheet

DGH 15 TF P

PRODUCT DETAILS

General information

VERSION

Open

Start-up type

Electric

Type of chassis

Static frame

Fuel

Unleaded gasoline

Voltage

400/230V

RPM

3000

Number of phases

Size and weight

L (mm)

990

W (mm)

620

H (mm)

670

Weight (Kg)

125

Engine

Engine make and model

HONDA GX690

Type of regulation

Mechanical

Refrigeration

Air-cooled

Emissions

EU Stage V

Consumption 75%

5,1 l/h

Consumption 100% PRP

6,7 l/h

Tank and autonomy

Tank size (l)

25 l

Autonomy 75% PRP

4,9 h

Autonomy 100% PRP

3,7 h

Alternator

Alternator make and model

LINZ E1S13S C/2

Type of alternator regulation

Compound

Downloadable documents

Data sheet (PDF) User's manual (PDF)

DGH 15 TF P

Range Portable - Professional

| 50Hz
