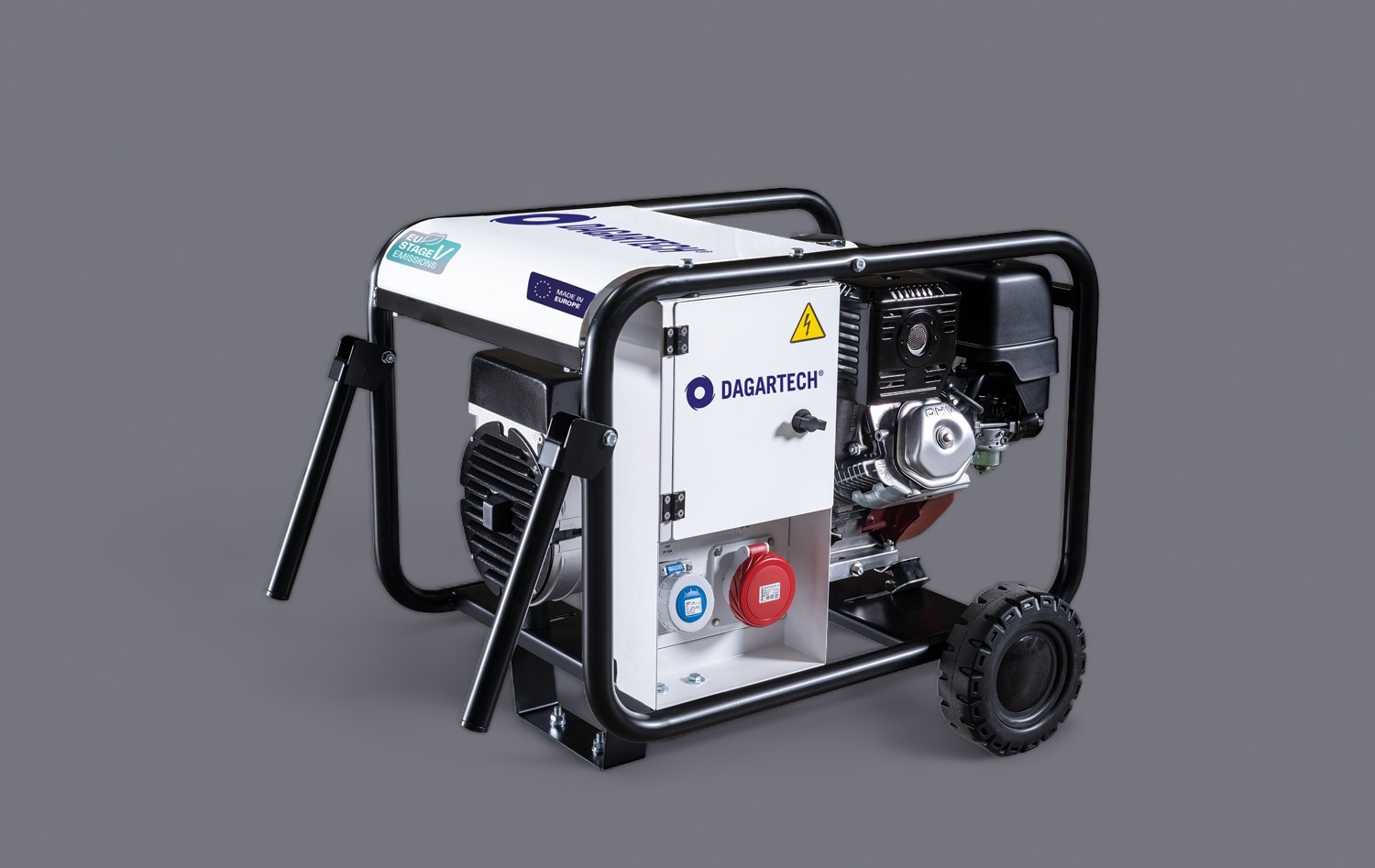

DGH 6 TF BC
Portable three-phase generator from the BC range. It features manual start and mobile chassis. This generator is especially suitable for machinery and construction rental.
Power (PRP / ESP):
6 / kVA (4,8 / kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage V
CE DECLARATION OF CONFORMITY
DGH 6 TF BC
DGH 6 TF BC
DGH 6 TF BC
DGH 6 TF BC
DGH 6 TF BC
DGH 6 TF BC
PRODUCT DETAILS
VERSION
Open
Start type
Manual
Chassis type
Moving frame
Fuel
Unleaded gasoline
Voltage
400/230V
Rpm
3000
Phase
3
Version
Open
L (mm)
863
W (mm)
696
H (mm)
661
Weight (Kg)
84
Type of regulation
Mechanical
Refrigeration
Air-cooled
Emissions
EU Stage V
Consumption 75%
1,3 l/h
Consumption 100%
1,3 l/h
Tank size (l)
15 l
Autonomy 75% PRP
11,5 h
Autonomy 100% PRP
8,8 h
Alternator model
LINZ E1S10M H
Type of alternator regulation
Compound
DGH 6 TF BC
Spectrum
| 50Hz
