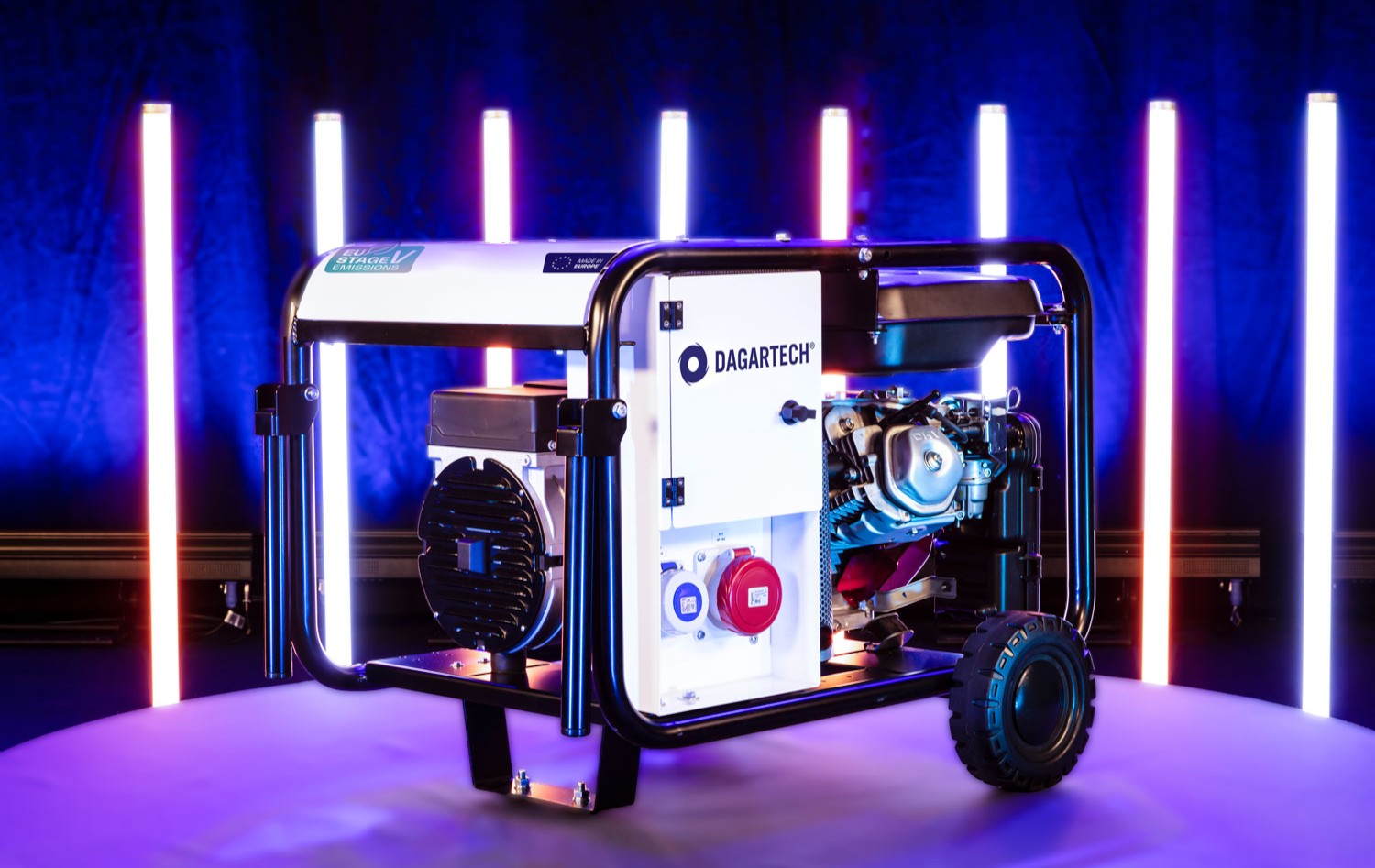

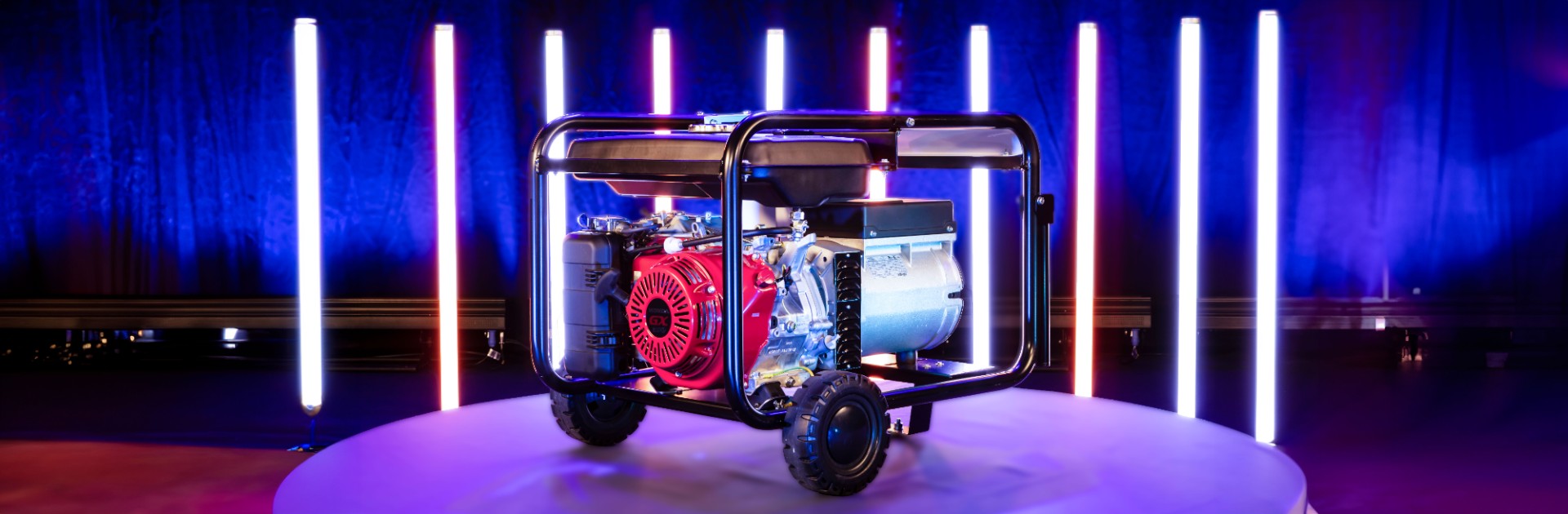

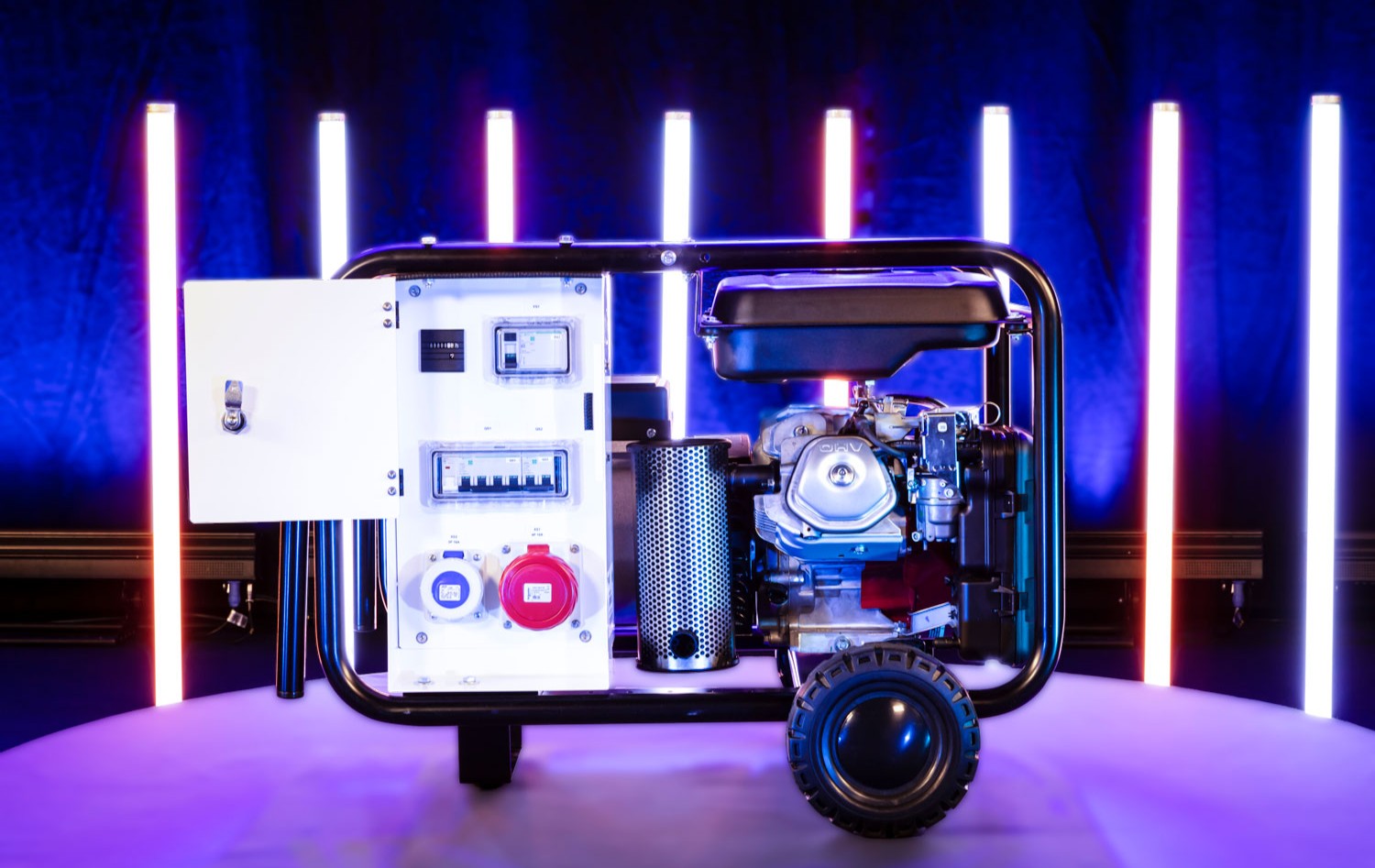

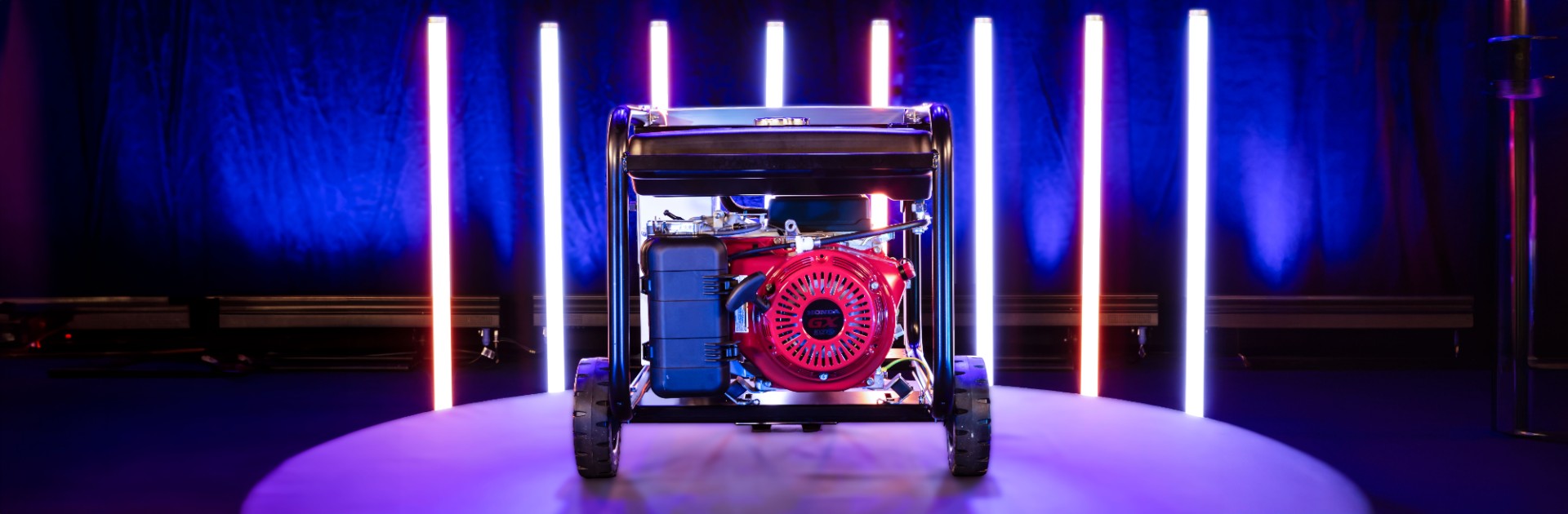

DGH 9 TF BC Plus

Portable three-phase generator from the BC Plus range. It features manual start and mobile chassis. This generator is especially suitable for machinery and construction rental.

Power (PRP / ESP):

8,1 / kVA (6,5 / kW)

VERSION:

Open

VOLTAGE:

400/230V

EMISSIONS LEVEL: EU Stage V

CE DECLARATION OF CONFORMITY

Data sheet

DGH 9 TF BC Plus

PRODUCT DETAILS

General information

VERSION

Open

Start-up type

Manual

Type of chassis

Moving frame

Fuel

Unleaded gasoline

Voltage

400/230V

RPM

3000

Number of phases

Size and weight

L (mm)

863

W (mm)

696

H (mm)

661

Weight (Kg)

111

Engine

Engine make and model

HONDA GX390

Type of regulation

centrifugal mass

Refrigeration

Air-cooled

Emissions

EU Stage V

Consumption 75%

1,8 l/h

Consumption 100% PRP

2,4 l/h

Tank and autonomy

Tank size (l)

15 l

Autonomy 75% PRP

8,3 h

Autonomy 100% PRP

6,2 h

Alternator

Alternator make and model

LINZ E1S10L L

Type of alternator regulation

Compound

Downloadable documents

Data sheet (PDF) User's manual (PDF)

DGH 9 TF BC Plus

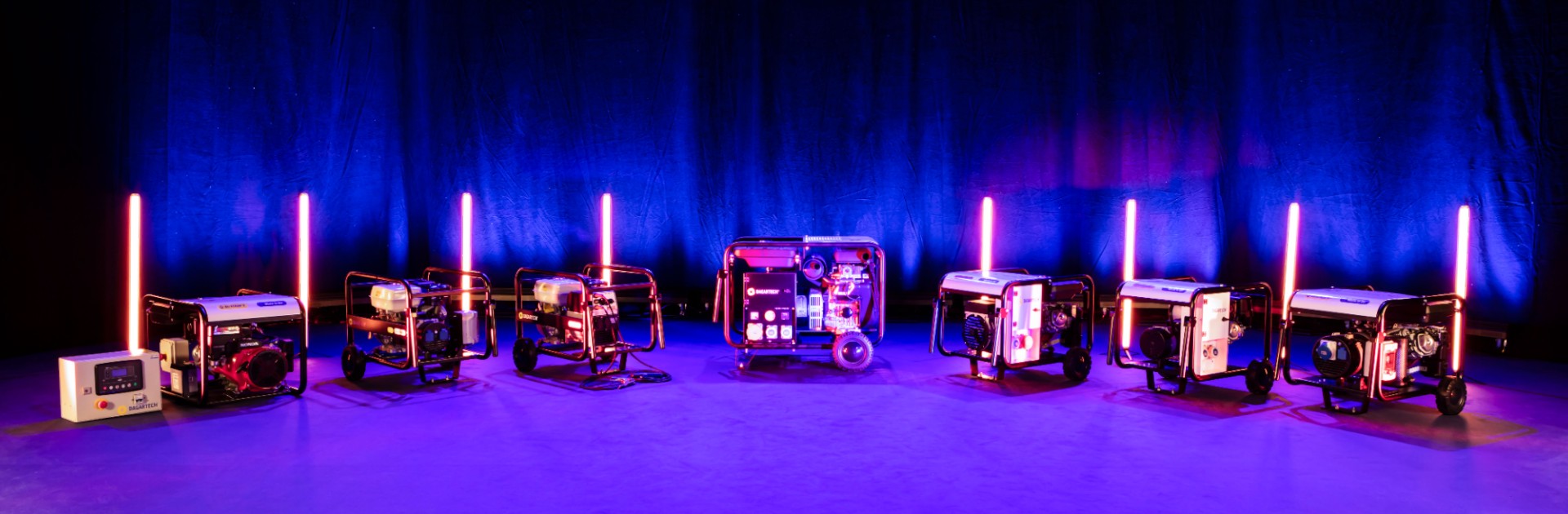

Range Portable - BC Plus
