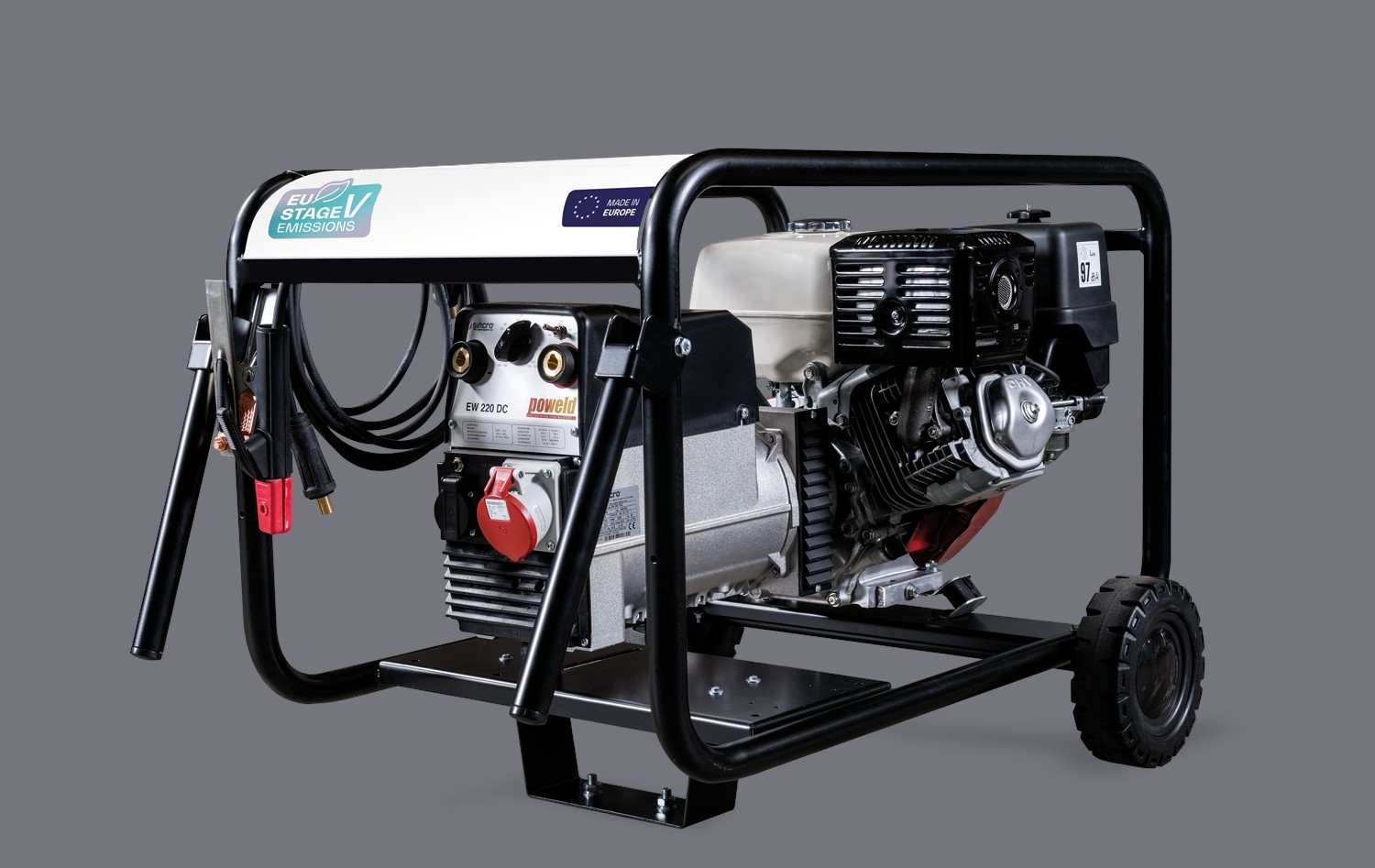

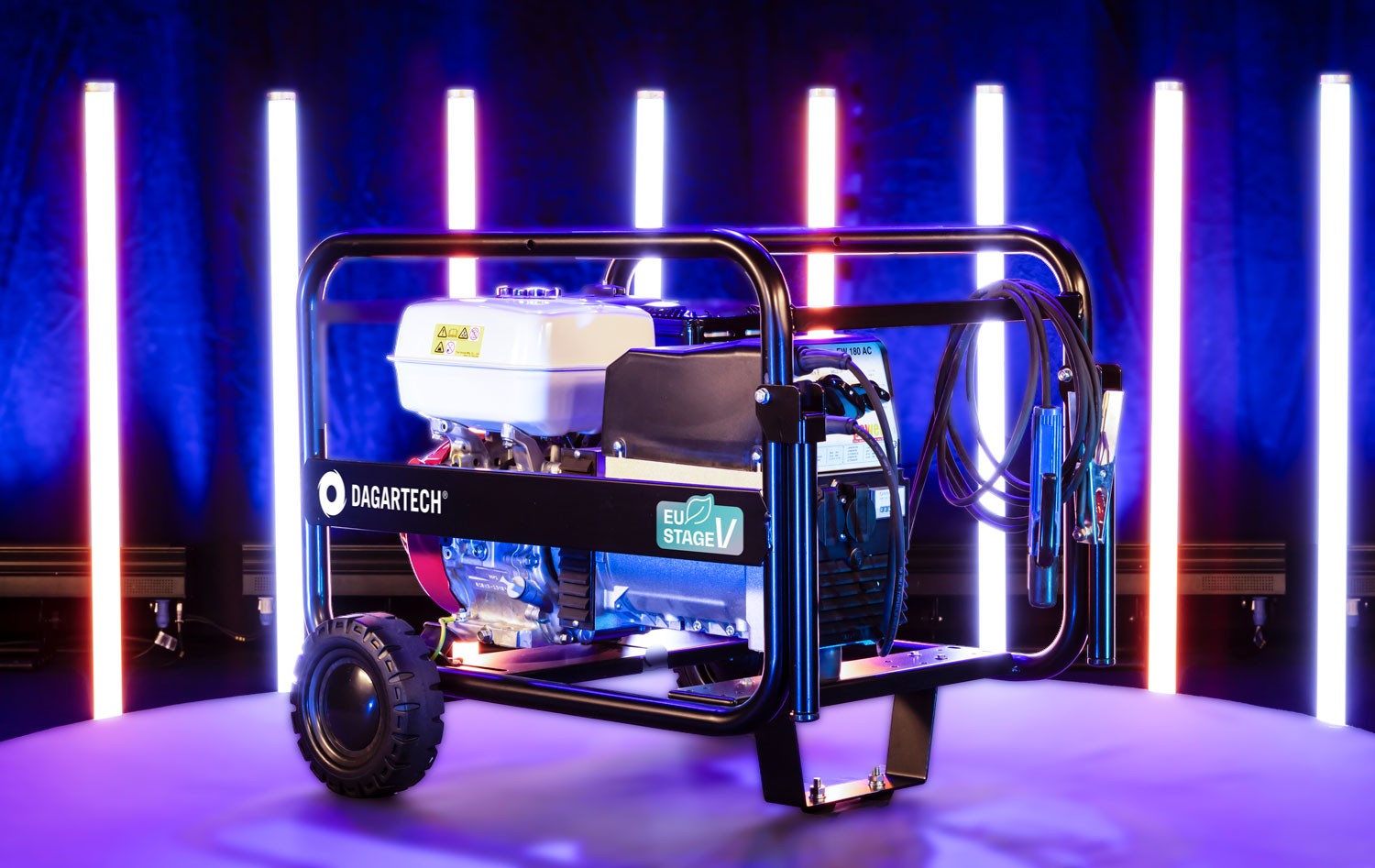

DGHW 220

Three-phase manual start welder generator. It can also operate in generator mode, although not simultaneously. The electric start version is optional.

Power (PRP / ESP):

6,5 / kVA (5,2 / kW)

VERSION:

Open

VOLTAGE:

400/230V

EMISSIONS LEVEL: EU Stage V

CE DECLARATION OF CONFORMITY

Data sheet

DGHW 220

PRODUCT DETAILS

General information

VERSION

Open

Start-up type

Manual

Type of chassis

Moving frame

Fuel

Unleaded gasoline

Voltage

400/230V

RPM

3000

Number of phases

Size and weight

L (mm)

863

W (mm)

696

H (mm)

661

Weight (Kg)

Engine

Engine make and model

HONDA GX390

Type of regulation

centrifugal mass

Refrigeration

Air-cooled

Emissions

EU Stage V

Consumption 75%

1,8 l/h

Consumption 100% PRP

2,4 l/h

Tank and autonomy

Tank size (l)

6,1 l

Autonomy 75% PRP

3,4 h

Autonomy 100% PRP

2,5 h

Alternator

Alternator make and model

SINCRO EW 220 DC

Type of alternator regulation

#N/A

Downloadable documents

Data sheet (PDF) User's manual (PDF)
