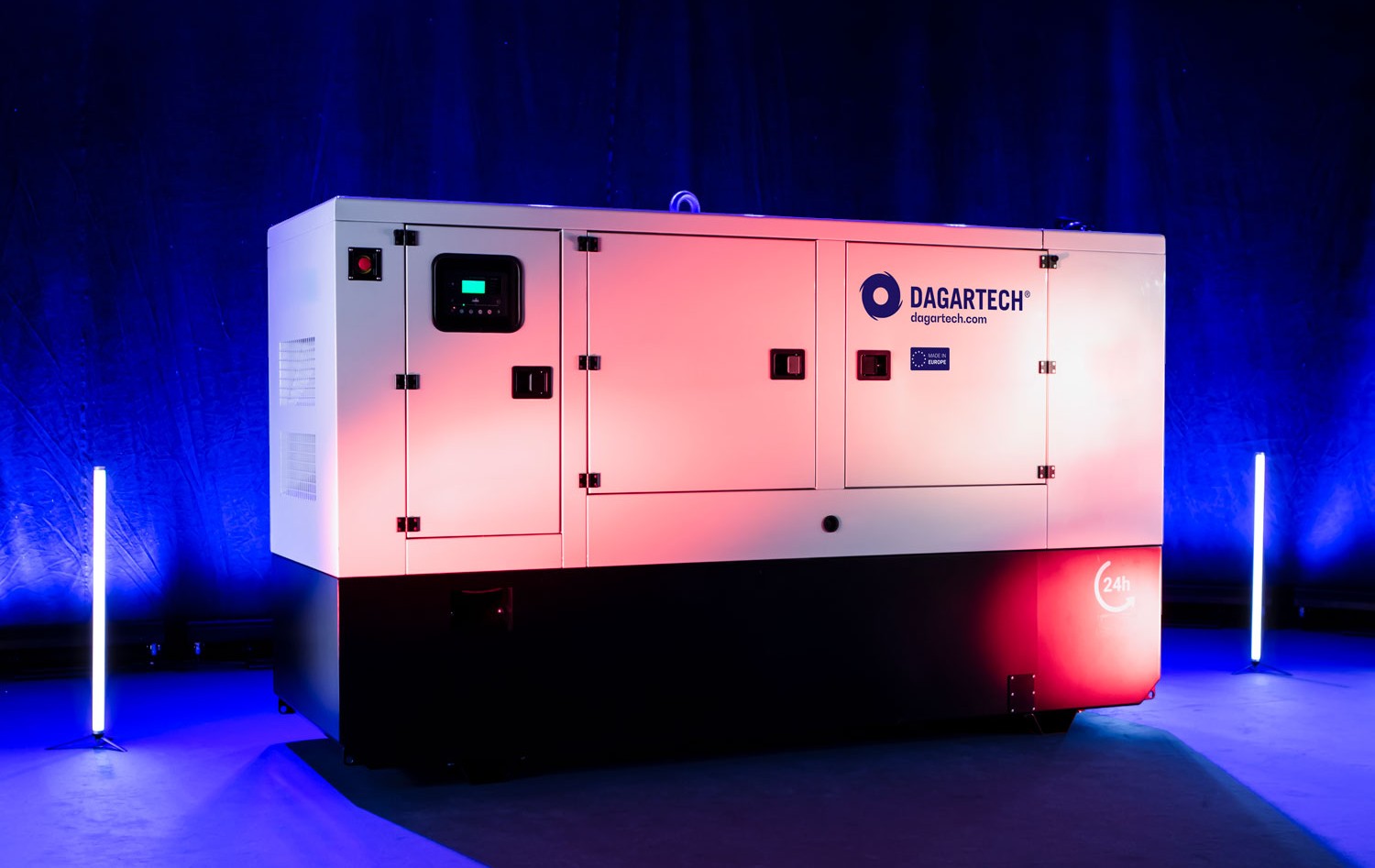

DGJSW 70 ST
Industrial range three-phase, soundproof generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
81 / 89 kVA (65 / 71 kW)
VERSION:
Soundproofed
VOLTAGE:
380/220V
EMISSIONS LEVEL: EPA Tier 1
CE DECLARATION OF CONFORMITY
DGJSW 70 ST
DGJSW 70 ST
DGJSW 70 ST
DGJSW 70 ST
DGJSW 70 ST
DGJSW 70 ST
PRODUCT DETAILS
VERSION
Soundproofed
Fuel
Diesel
Voltage
380/220V
RPM
1800
Number of phases
3
L (mm)
2450
W (mm)
1042
H (mm)
1620
Weight (Kg)
1475
Engine make and model
JOHN-DEERE 4045TF158R
Type of regulation
Mechanical
Refrigeration
Water-cooled
Emissions
EPA Tier 1
Consumption 50%
10 l/h
Consumption 75%
14 l/h
Consumption 100% PRP
19 l/h
Consumption 100% ESP
20,5 l/h
Tank size (l)
205 l
Autonomy 50% PRP
20,5 h
Autonomy 75% PRP
14,6 h
Autonomy 100% PRP
10,8 h
Autonomy 100% ESP
10 h
Alternator make and model
STAMFORD UCI224G
Type of alternator regulation
AS440
Switch model
Schneider EasyPact 160A 4P
Amps ESP (A)
135,2
Make and model
DSE 7320 MKII
DGJSW 70 ST
Range Industrial
| 60Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
