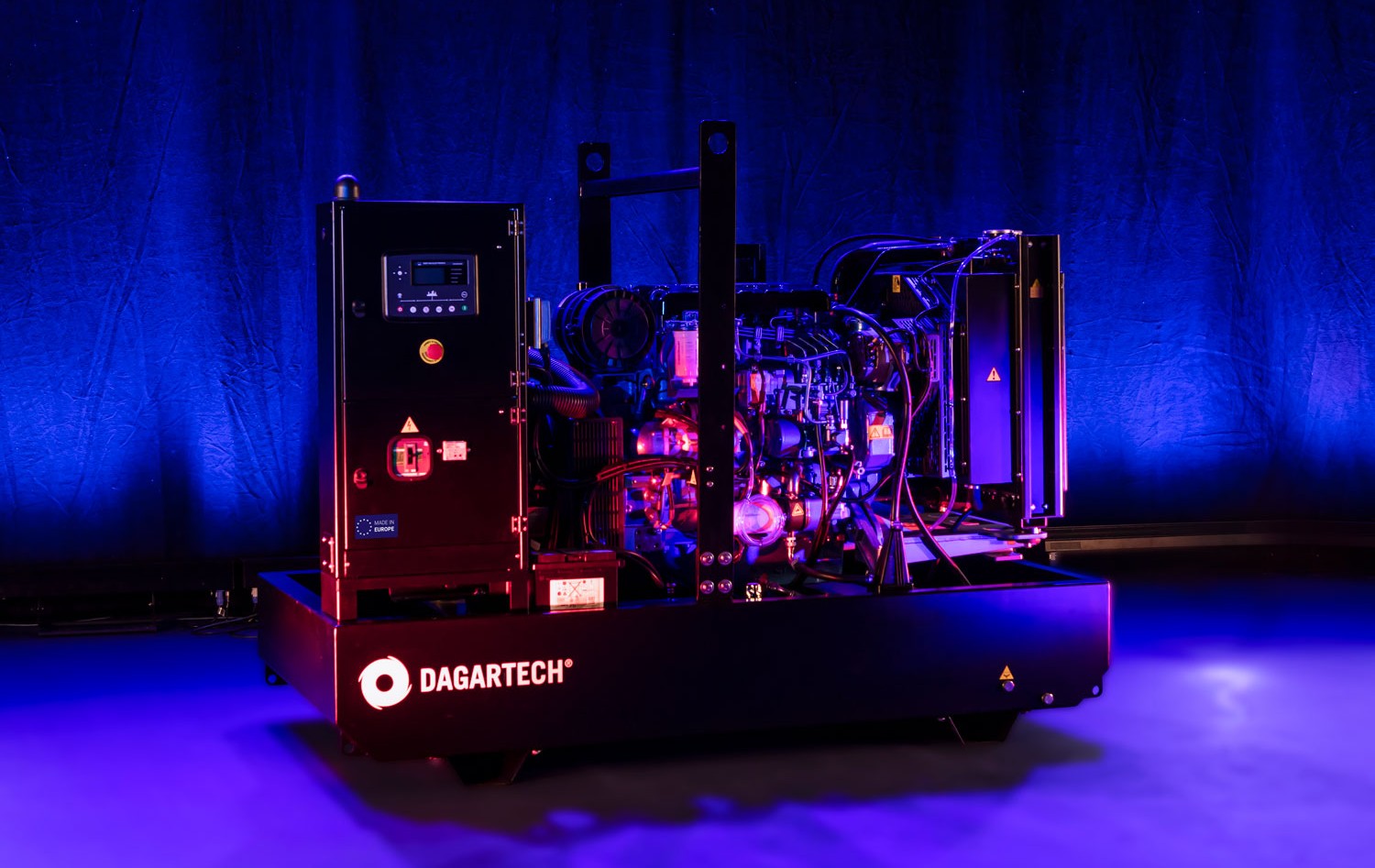

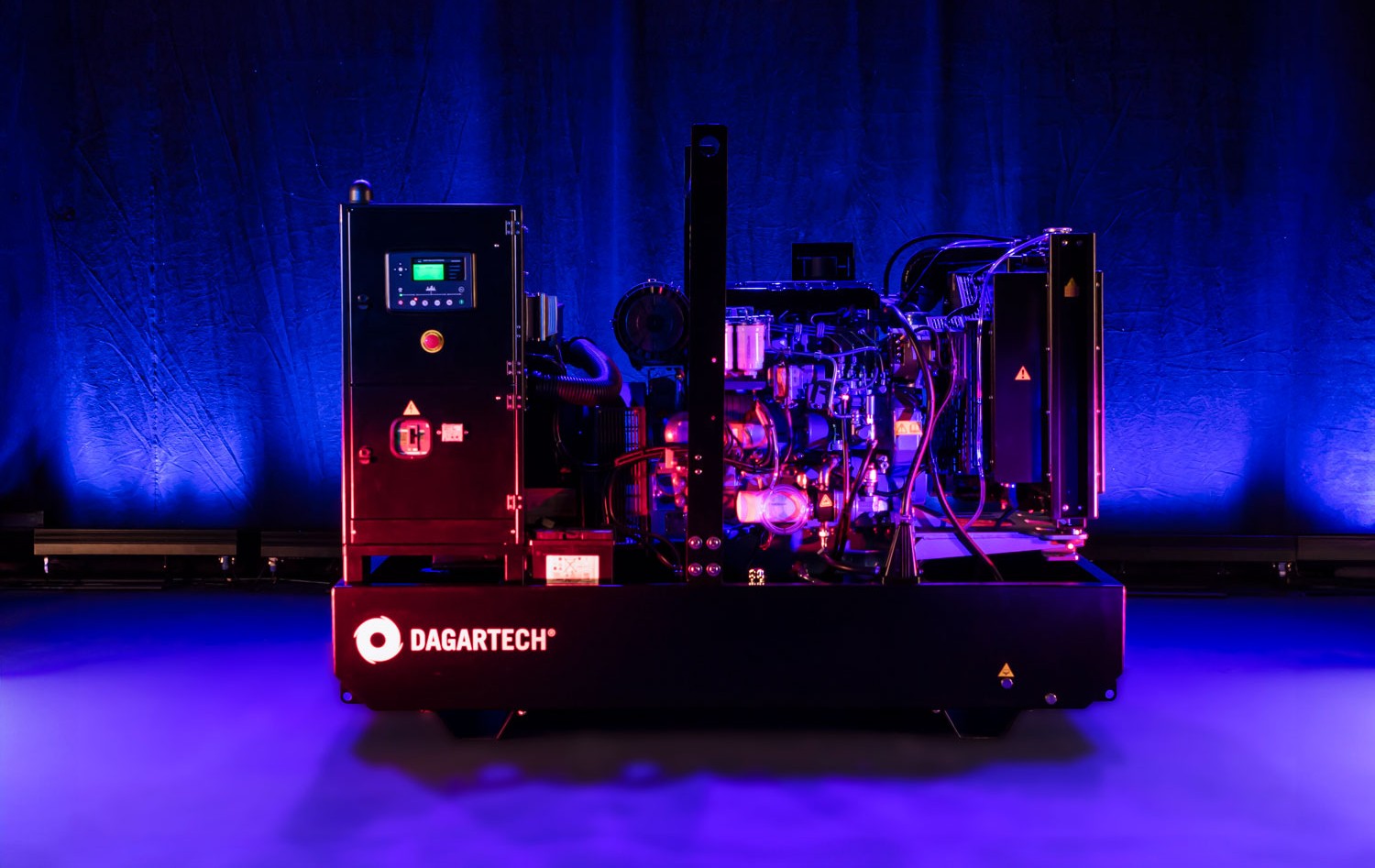

DGP 15 ST
Industrial range three-phase open generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
13 / 14 kVA (10 / 11 kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage 0
CE DECLARATION OF CONFORMITY
Another version of this product
DGP 15 ST
DGP 15 ST
DGP 15 ST
DGP 15 ST
DGP 15 ST
DGP 15 ST
PRODUCT DETAILS
VERSION
Open
Fuel
Diesel
Voltage
400/230V
RPM
1500
Number of phases
3
L (mm)
1350
W (mm)
720
H (mm)
1283
Weight (Kg)
470
Engine make and model
PERKINS 403A-15G1
Type of regulation
Mechanical
Refrigeration
Water-cooled
Emissions
EU Stage 0
Consumption 50%
2 l/h
Consumption 75%
2,8 l/h
Consumption 100% PRP
3,7 l/h
Consumption 100% ESP
4,1 l/h
Tank size (l)
84 l
Autonomy 50% PRP
41,2 h
Autonomy 75% PRP
30,1 h
Autonomy 100% PRP
22,9 h
Autonomy 100% ESP
20,6 h
Alternator make and model
STAMFORD S0L1-L
Type of alternator regulation
AS540
Switch model
Schneider Acti 9 25A 4P
Amps ESP (A)
20,2
Make and model
DSE 6020 MKII
DGP 15 ST
Range Industrial
| 50Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
