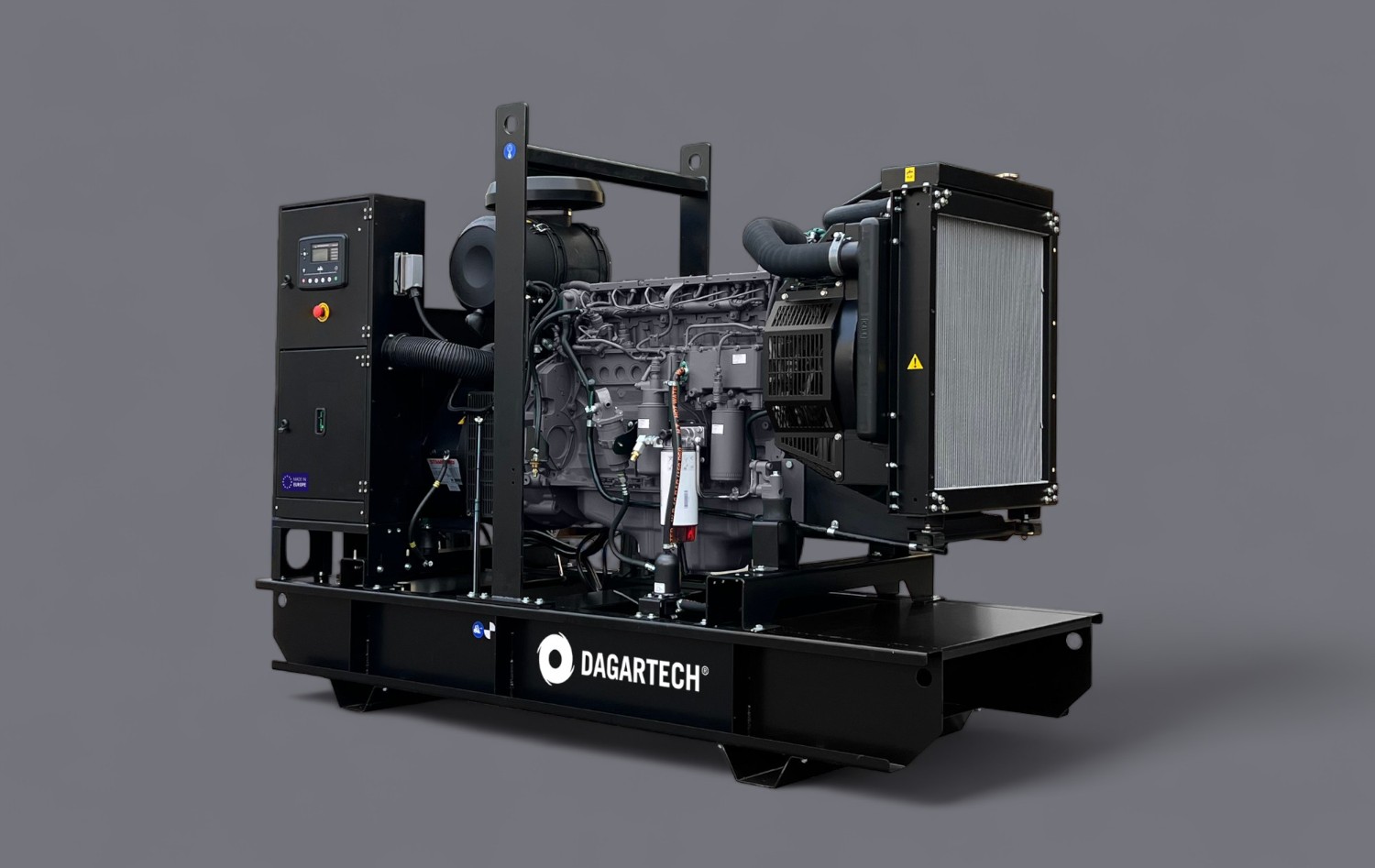

DGP 200 ST
Industrial range three-phase open generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
184 / 204 kVA (147 / 163 kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage 0
CE DECLARATION OF CONFORMITY
Another version of this product
DGP 200 ST
DGP 200 ST
DGP 200 ST
DGP 200 ST
DGP 200 ST
DGP 200 ST
PRODUCT DETAILS
VERSION
Open
Fuel
Diesel
Voltage
400/230V
RPM
1500
Number of phases
3
L (mm)
2600
W (mm)
1000
H (mm)
1900
Weight (Kg)
1700
Engine make and model
PERKINS 1106A-70TAG3
Type of regulation
Mechanical
Refrigeration
Water-cooled
Emissions
EU Stage 0
Consumption 50%
20,1 l/h
Consumption 75%
31,8 l/h
Consumption 100% PRP
41,6 l/h
Consumption 100% ESP
44,6 l/h
Tank size (l)
430 l
Autonomy 50% PRP
21,4 h
Autonomy 75% PRP
13,5 h
Autonomy 100% PRP
10,3 h
Autonomy 100% ESP
9,6 h
Alternator make and model
STAMFORD UCI274H
Type of alternator regulation
AS440
Switch model
Schneider EasyPact 400A 4P
Amps ESP (A)
294,4
Make and model
DSE 6020 MKII
DGP 200 ST
Range Industrial
| 50Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
