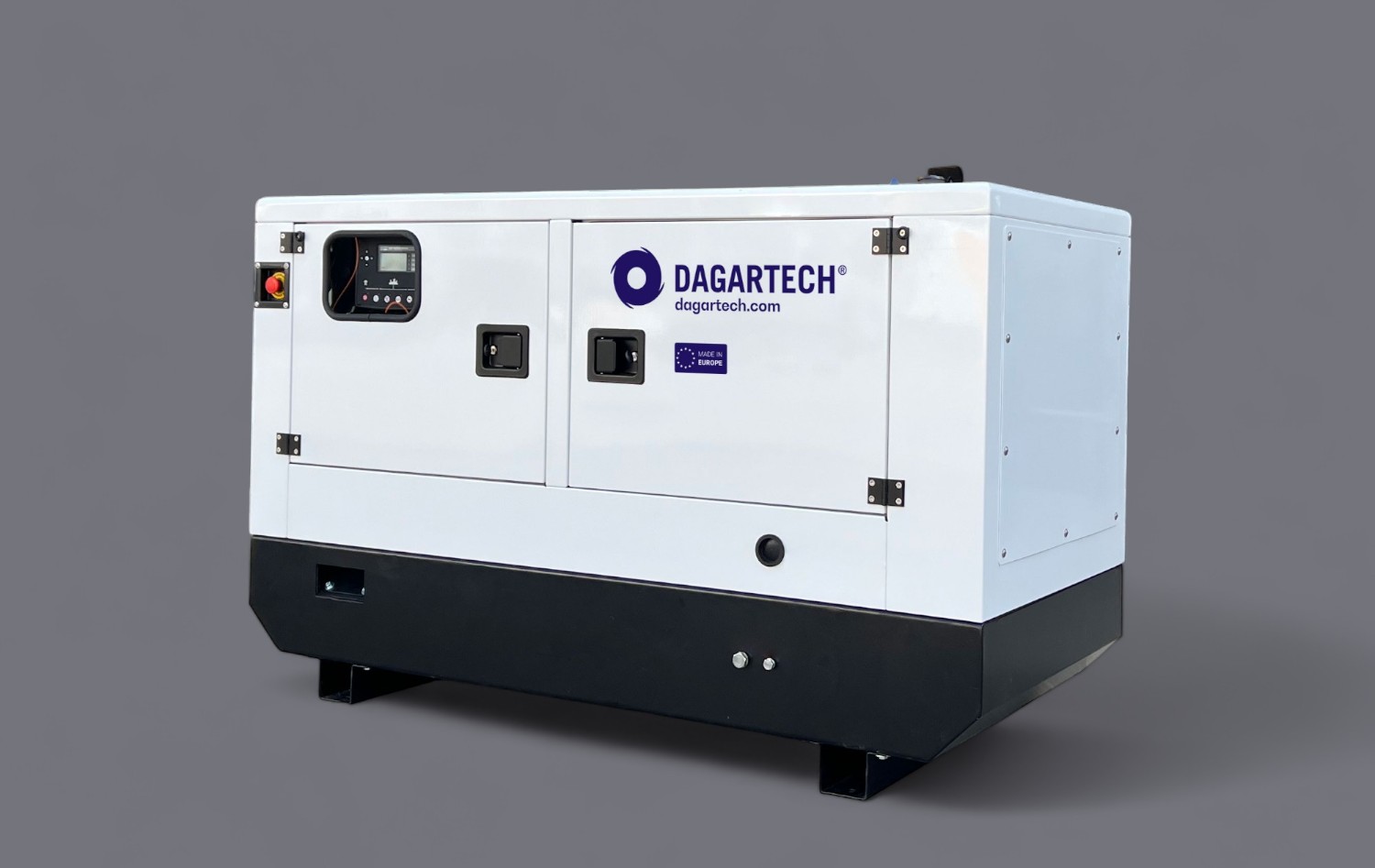

DGPS 11 MF ST
Industrial range single-phase, soundproof generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
10 / 11 kVA (10 / 11 kW)
VERSION:
Soundproofed
VOLTAGE:
230V
EMISSIONS LEVEL: EU Stage 0
CE DECLARATION OF CONFORMITY
Another version of this product
DGPS 11 MF ST
DGPS 11 MF ST
DGPS 11 MF ST
DGPS 11 MF ST
DGPS 11 MF ST
DGPS 11 MF ST
PRODUCT DETAILS
VERSION
Soundproofed
Fuel
Diesel
Voltage
230V
RPM
1500
Number of phases
1
L (mm)
1877
W (mm)
862
H (mm)
1239
Weight (Kg)
635
Engine make and model
PERKINS 403A-15G1
Type of regulation
Mechanical
Refrigeration
Water-cooled
Emissions
EU Stage 0
Consumption 50%
2 l/h
Consumption 75%
2,8 l/h
Consumption 100% PRP
3,7 l/h
Consumption 100% ESP
4,1 l/h
Tank size (l)
80 l
Autonomy 50% PRP
39,2 h
Autonomy 75% PRP
28,7 h
Autonomy 100% PRP
21,8 h
Autonomy 100% ESP
19,6 h
Alternator make and model
STAMFORD S0L2-G 1ph
Type of alternator regulation
AS540
Switch model
Schneider Acti 9 50A 2P
Amps ESP (A)
46,7
Make and model
DSE 6020 MKII
DGPS 11 MF ST
Range Industrial
| 50Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
