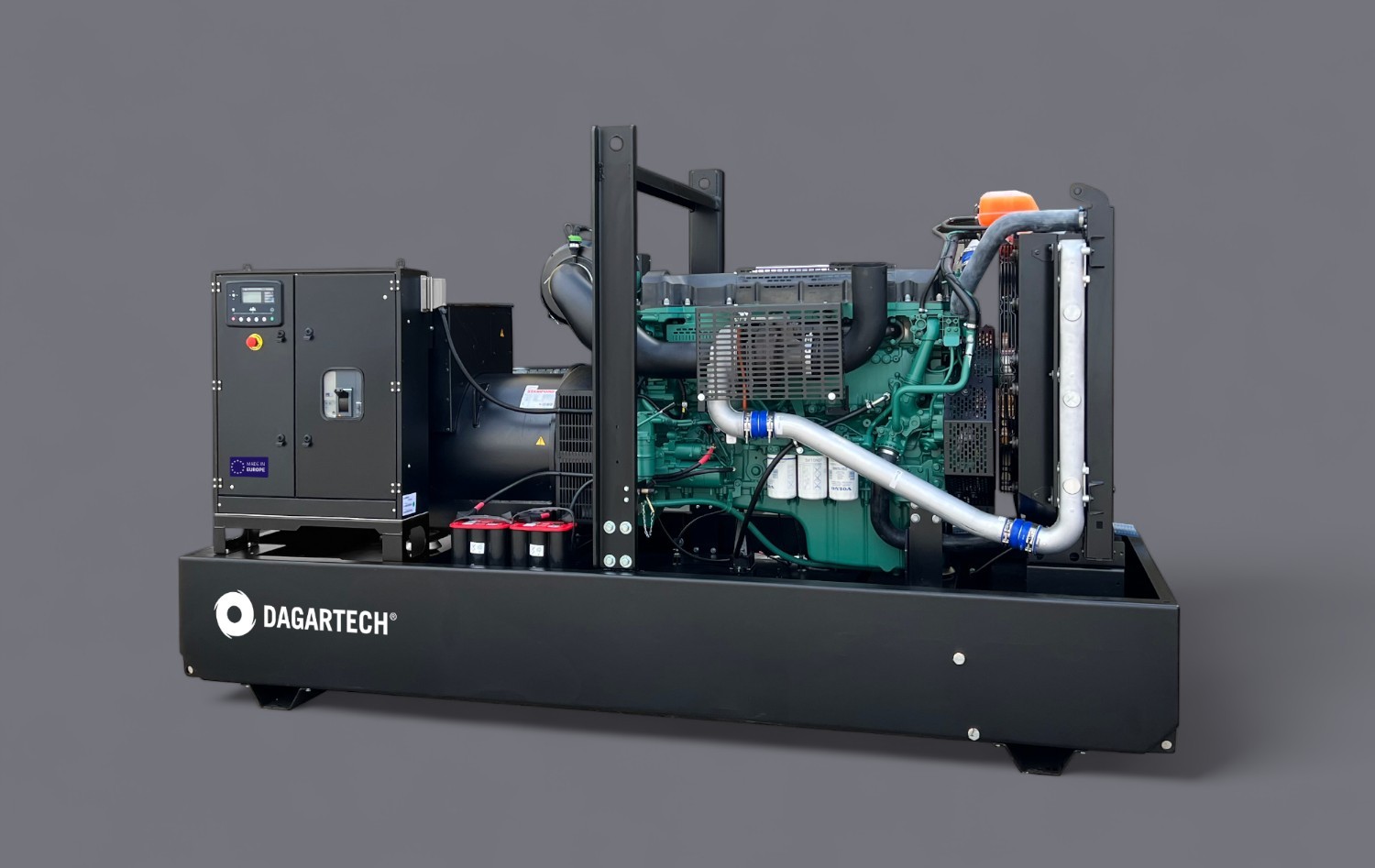

DGV 650 ST
Industrial range three-phase open generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
600 / 657 kVA (480 / 526 kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage II
CE DECLARATION OF CONFORMITY
Another version of this product
DGV 650 ST
DGV 650 ST
DGV 650 ST
DGV 650 ST
DGV 650 ST
DGV 650 ST
PRODUCT DETAILS
VERSION
Open
Fuel
Diesel
Voltage
400/230V
RPM
1500
Number of phases
3
L (mm)
3950
W (mm)
1550
H (mm)
2400
Weight (Kg)
4600
Engine make and model
VOLVO TAD1642GE-B
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage II
Consumption 50%
59,5 l/h
Consumption 75%
88,4 l/h
Consumption 100% PRP
116 l/h
Consumption 100% ESP
129,7 l/h
Tank size (l)
1400 l
Autonomy 50% PRP
23,5 h
Autonomy 75% PRP
15,8 h
Autonomy 100% PRP
12,1 h
Autonomy 100% ESP
10,8 h
Alternator make and model
STAMFORD HCI544E
Type of alternator regulation
AS440
Switch model
Schneider ComPact 1000A 4P
Amps ESP (A)
948,3
Make and model
DSE 7320 MKII
DGV 650 ST
Range Industrial
| 50Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
