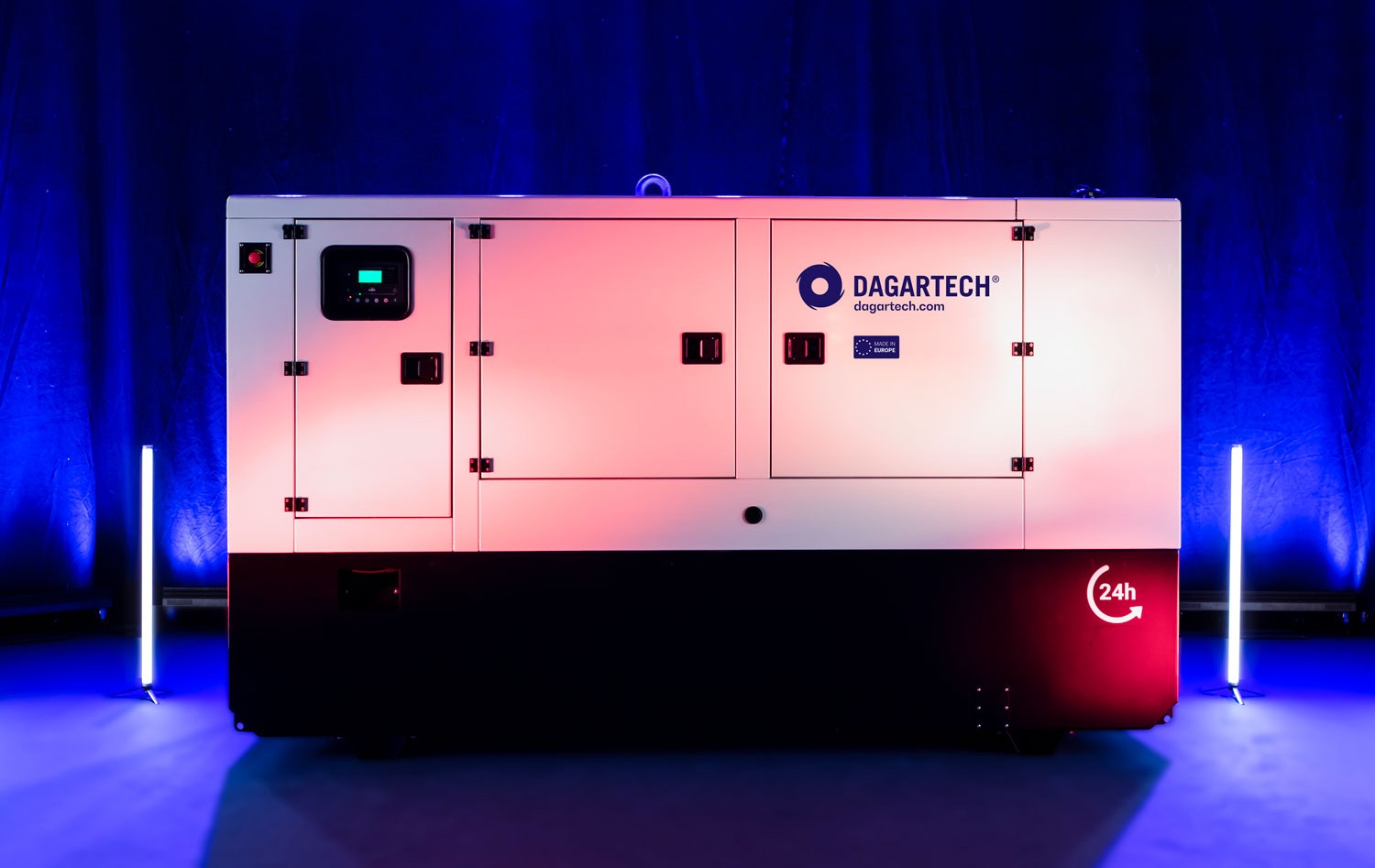

DGVSW 230 ST
Industrial range three-phase, soundproof generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
261 / 287 kVA (209 / 230 kW)
VERSION:
Soundproofed
VOLTAGE:
220/127V
EMISSIONS LEVEL: EU Stage II
CE DECLARATION OF CONFORMITY
DGVSW 230 ST
DGVSW 230 ST
DGVSW 230 ST
DGVSW 230 ST
DGVSW 230 ST
DGVSW 230 ST
PRODUCT DETAILS
VERSION
Soundproofed
Fuel
Diesel
Voltage
220/127V
RPM
1800
Number of phases
3
L (mm)
3875
W (mm)
1456
H (mm)
2070
Weight (Kg)
3550
Engine make and model
VOLVO TAD841GE
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage II
Consumption 50%
28,7 l/h
Consumption 75%
41 l/h
Consumption 100% PRP
53 l/h
Consumption 100% ESP
58,5 l/h
Tank size (l)
570 l
Autonomy 50% PRP
19,9 h
Autonomy 75% PRP
13,9 h
Autonomy 100% PRP
10,7 h
Autonomy 100% ESP
9,8 h
Alternator make and model
STAMFORD UCDI274K
Type of alternator regulation
AS440
Switch model
Schneider ComPact 800A 4P
Amps ESP (A)
753,2
Make and model
DSE 7320 MKII
DGVSW 230 ST
Range Industrial
| 60Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
