DGVSW 650 ST

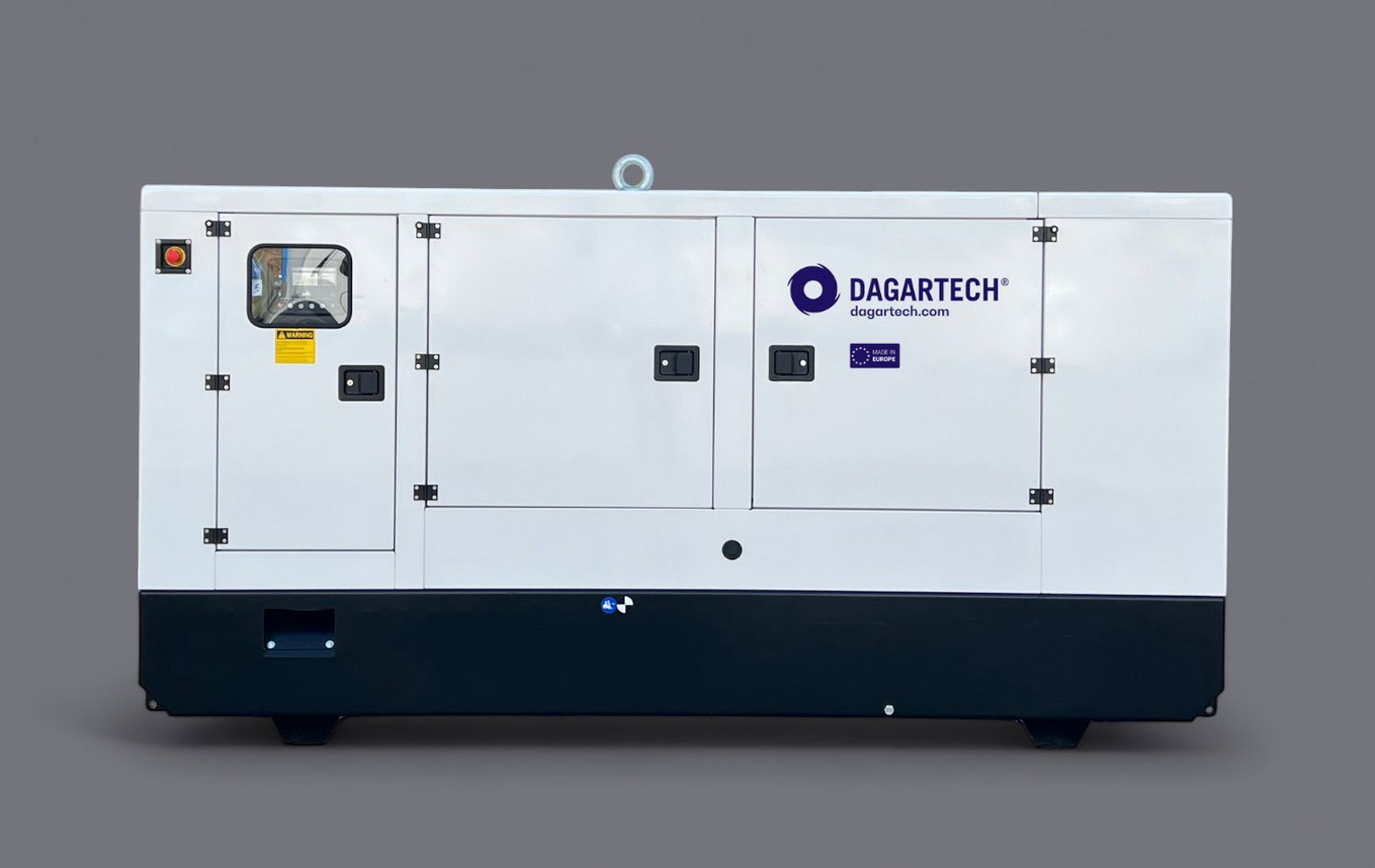

Industrial range three-phase, soundproof generator, operating in automatic mode, manual mode, signal mode, or test mode. A commitment to quality energy.
Power (PRP / ESP):
735 / 807 kVA (588 / 646 kW)
VERSION:
Soundproofed
VOLTAGE:
480/277V
EMISSIONS LEVEL: EU Stage II
CE DECLARATION OF CONFORMITY
Product in other voltages:
DGVSW 650 ST
DGVSW 650 ST
DGVSW 650 ST
DGVSW 650 ST
DGVSW 650 ST
DGVSW 650 ST
PRODUCT DETAILS
VERSION
Soundproofed
Fuel
Diesel
Voltage
480/277V
RPM
1800
Number of phases
3
L (mm)
5003
W (mm)
2058
H (mm)
2525
Weight (Kg)
7000
Engine make and model
VOLVO TWD1645GE
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage II
Consumption 50%
76,6 l/h
Consumption 75%
109,4 l/h
Consumption 100% PRP
143 l/h
Consumption 100% ESP
157,3 l/h
Tank size (l)
1300 l
Autonomy 50% PRP
17 h
Autonomy 75% PRP
11,9 h
Autonomy 100% PRP
9,1 h
Autonomy 100% ESP
8,3 h
Alternator make and model
STAMFORD S5L1D-G
Type of alternator regulation
AS440
Switch model
Schneider ComPact 1000A 4P
Amps ESP (A)
970,7
Make and model
DSE 7320 MKII
DGVSW 650 ST
Range Industrial
| 60Hz
Do you need an ATS for your installation?
CONTACTORS TRANSFER SWITCHES
Switching panels between mains and genset with Schneider Electric contactors and enclosure from the same manufacturer. With mechanical and electrical interlocking and switching management from the control panel. They have an optional mains failure detector.
REMOTELY OPERATED MOTORISED TRANSFER SWITCH (RTS)
Transfer switches with remote-operated 4-pole fully visible break. They allow in-load transfer of two three-phase sources via remote-voltage-free contacts, from an external automatic controller, using pulse logic or a switch.
They are designed for use in low-voltage power systems where a brief interruption of load power during transfer is acceptable.
