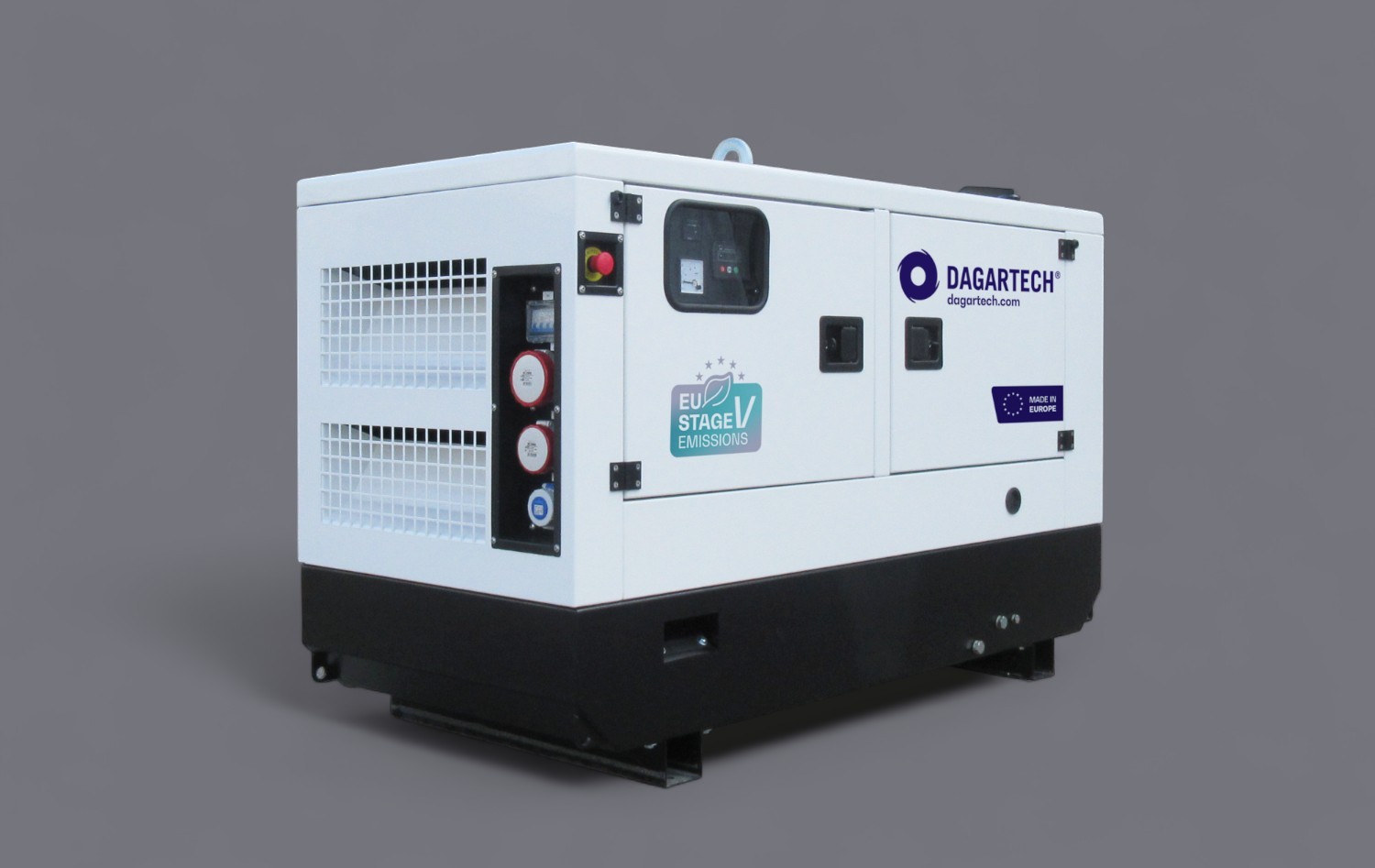

DGYR 20 ST
Three-phase generator. You are facing a robust and efficient unit, prepared to handle demanding environments, complying strictly with the requirements of EU Stage V directive.
Power (PRP / ESP):
18 / 20 kVA (14 / 16 kW)
VERSION:
Soundproofed
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage V
CE DECLARATION OF CONFORMITY
DGYR 20 ST
DGYR 20 ST
DGYR 20 ST
DGYR 20 ST
DGYR 20 ST
DGYR 20 ST
PRODUCT DETAILS
VERSION
Soundproofed
Fuel
Diesel
Voltage
400/230V
RPM
1500
Number of phases
3
L (mm)
1903
W (mm)
862
H (mm)
1291
Weight (Kg)
700
Engine make and model
YANMAR 4TNV88-BIECS
Type of regulation
Mechanical
Refrigeration
Water-cooled
Emissions
EU Stage V
Consumption 100% PRP
5 l/h
Tank size (l)
100 l
Autonomy 100% PRP
20 h
Alternator make and model
STAMFORD S0L2-G
Type of alternator regulation
AS540
Switch model
Chint 32A 4P
Amps ESP (A)
28,9
Make and model
DSE 3110
DGYR 20 ST
Range Rental Plus
| 50Hz
Interested in learning more about this generator? Simply fill out the form below to receive all the details
* Remember to fill out all required fields

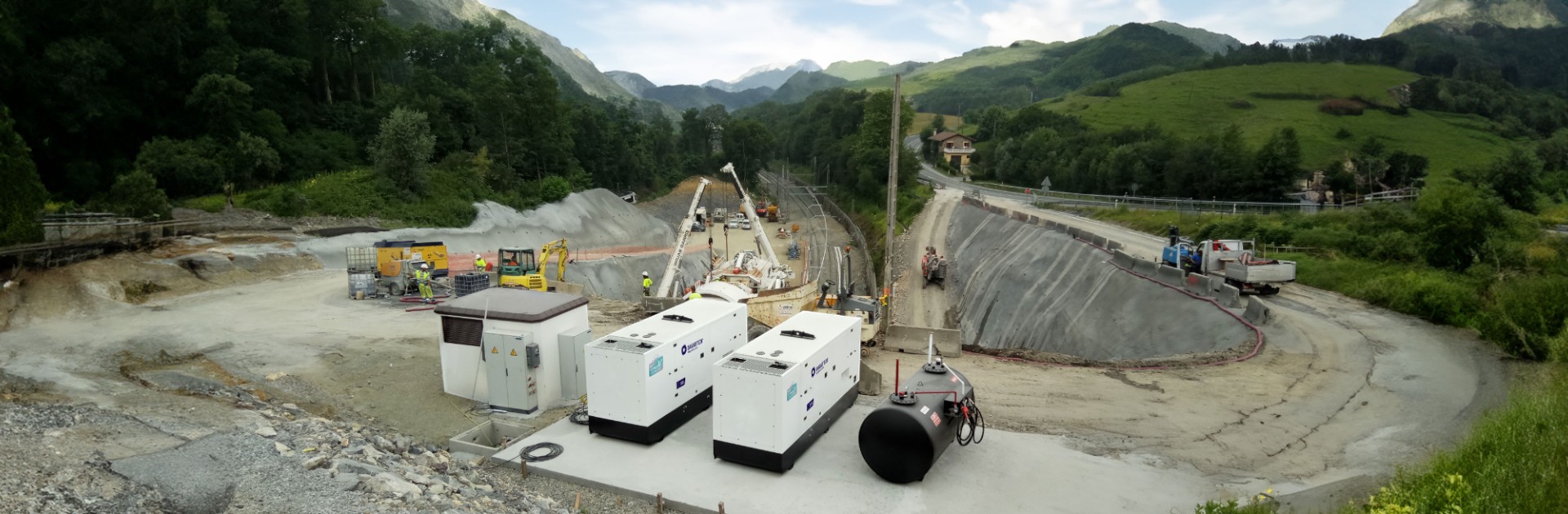

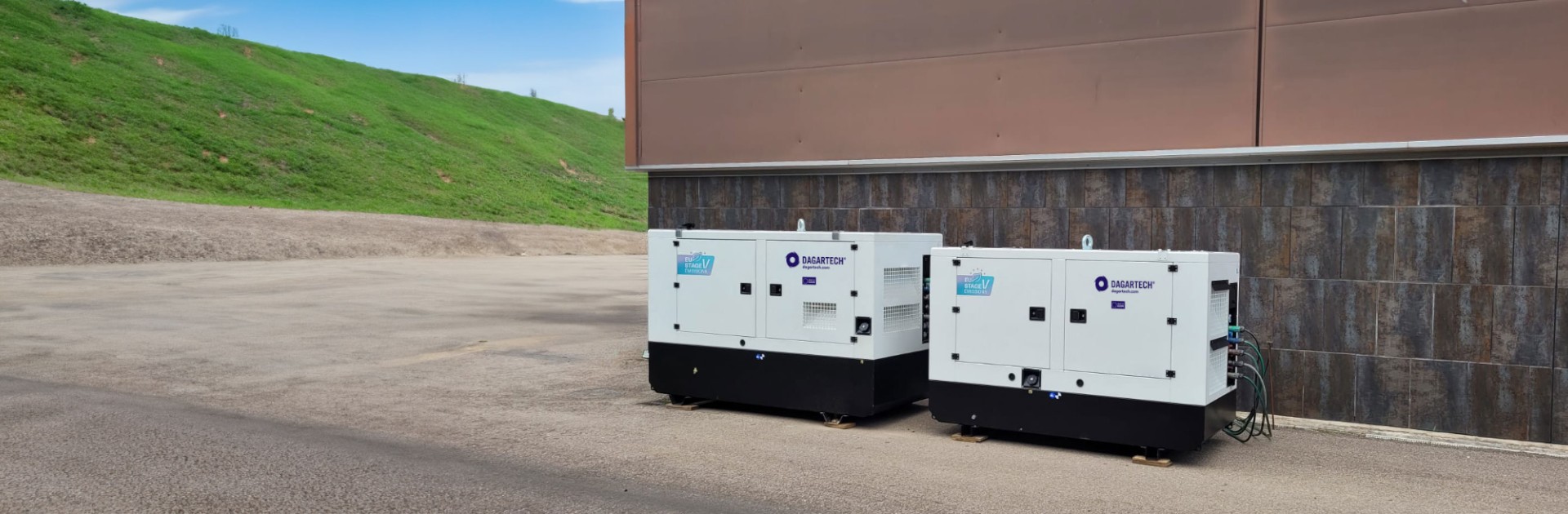

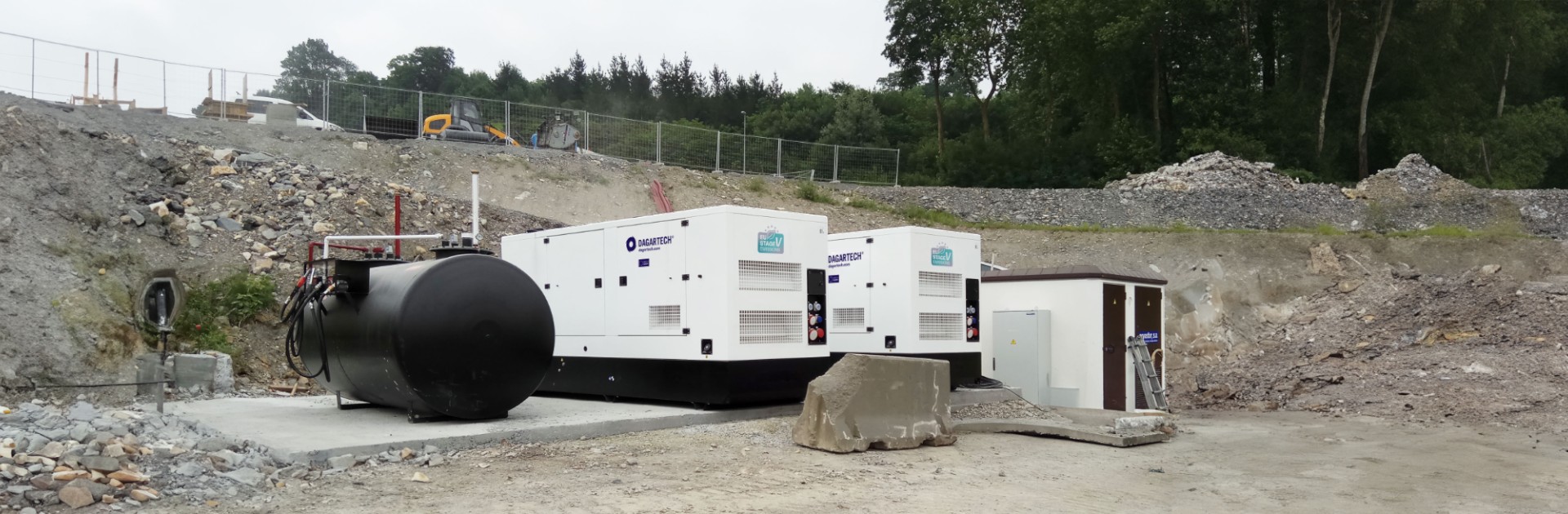

Success Stories for this Range
