STELLAR ENERGY IN ACTION

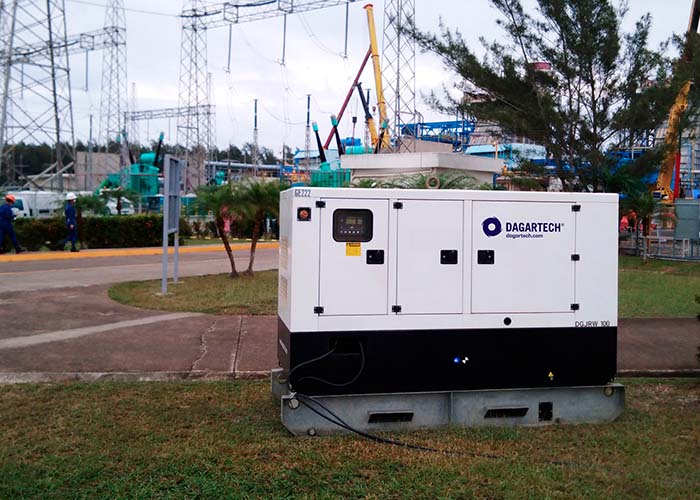

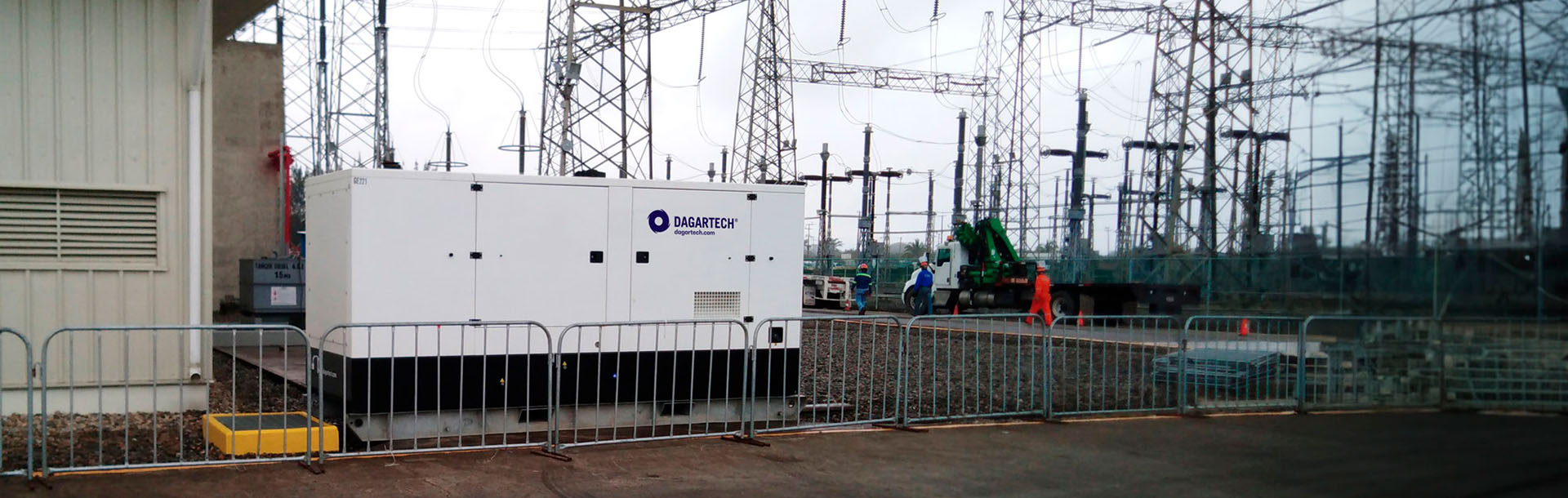

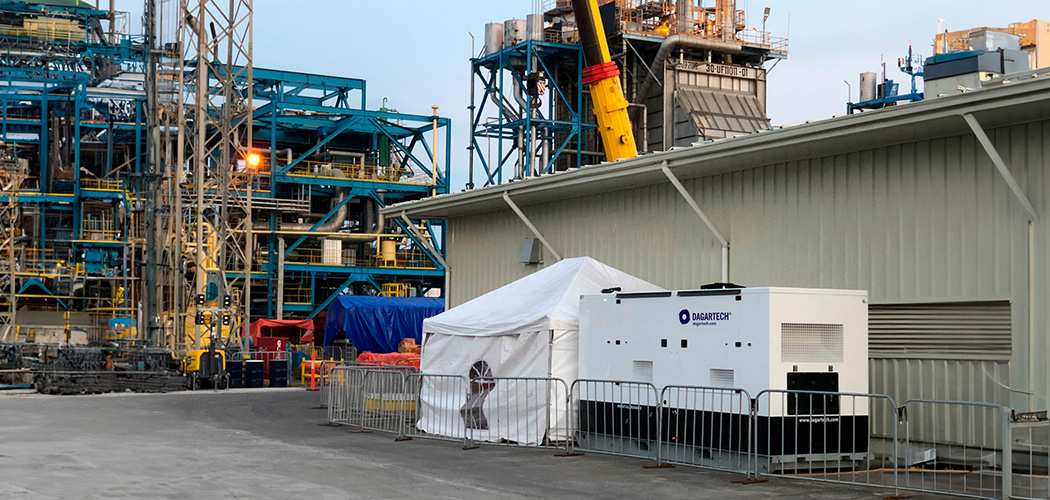

4,800 kW of Dagartech power guarantees the maintenance of the Tuxpan Thermoelectric Power Plant, Mexico

The Adolfo López Mateos thermoelectric power plant is located in the town of Tuxpan, Veracruz. The plant has six generators with the capacity to produce 2,100 megawatts of electricity, making it the largest power generator in the country.

Installation locationTuxpan, Veracruz (Mexico)

Power of the sets,Power of the sets4 x 400 kW + 4 x 500 kW + 10 x 100 kW + 10 x 20 kW

Installed generators setsTrade reference: 4 x DGVRW 400 ST + 4 x DGVRW 500 ST + 10 x DGJRW 100 ST + 10 x DGPRW 20 ST

Big 1050x500
small - 700x500_

The needs of the client

Guaranteeing the continuity of the power plant for 24 hours was the starting point of the project.

To ensure the maintenance, assembly and testing of a plant of this magnitude, required the supply of 28 generators with a 24-hour service regime. The installation of these generators was to cover the energy needs of all the works.

Supply scope breakdown of the equipment

  • Motor-alternator block
    • 20 kW equipment
      • Perkins engine (404A-22G).
      • Stamford alternator (S0L2G) with auxiliary winding.
    • 100 kW equipment
      • John Deere engine (4045HF158).
      • Stamford Alternator (UCI274D) with PMG + MX341.
    • 400 kW equipment
      • Volvo engine (TAD1344GE).
      • Stamford Alternator (HCI444F) with PMG + MX341.
    • 500 kW equipment
      • Volvo engine (TAD1641GE).
      • Stamford Alternator (HCI544D) with PMG + MX341.
  • Control panelsControl panels
    • DeepSea Electronics control module – – DSE 7320 MKII.
      • Switchboard with network monitoring, which will automatically switch the generator set on when an outage is detected in the electrical grid and will automatically switch off when the supply of electricity is restored.
      • It makes it possible to monitor a large number of engine parameters and to display information, status and alarm alerts.
      • It is equipped with USB, RS232 and RS485 communication ports, in addition to DSENet® for system expansion.
      • It offers the option of Ethernet networking.
  • Fuel tanks

    Fuel tanks with a capacity of 640 litres located on the bench .
    itself. It guarantees the 24 hours of autonomy – at 110% charge.
